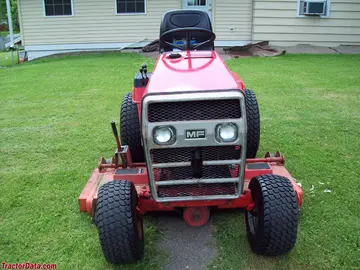

massey ferguson lawn tractors 1655
 | 1976 - 1979
Garden tractorSnapper built | 1976 - 1979 | Garden tractor | Snapper built |
|---|---|---|---|---|
1976 - 1979 | ||||
Garden tractor | ||||
Snapper built | ||||
1976 - 1979 | |
|---|---|
Garden tractor | |
Snapper built |
Production | |
|---|---|
Distributor | Massey Ferguson |
Manufacturer | Snapper |
Garden tractor | |
Built in Fort Worth, Texas, USA | |
Massey Ferguson 1655 Engine | |
|---|---|
16HP Onan 709cc 2-cyl gasoline | |
Fuel tank | 3.5 gal
13.2 L |
Engine details ...  | |
Massey Ferguson 1655 Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Disc brakes | |
Open operator station. |
Photos | |
|---|---|
 | |
Massey Ferguson 1655 photos...  |
Tractor hitch | |
|---|---|
Rear Type | 0 OptOptional |
Rear lift (at ends) | 650 lbs
294 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent OptOptional |
Rear PTO Type | 2000 |
Mid PTO | independent |
Clutch | electric |
Dimensions & Tires | |
|---|---|
Wheelbase | 52 inches
132 cm |
Weight | 860 to 950 pounds |
Front tire | 18x8.50-8 |
Rear tire | 26x12.00-12 |
Full dimensions and tires ...  | |
Massey Ferguson 1655 attachments | |
|---|---|
48" mid-mount mower deck | |
54" mid-mount mower deck | |
snowblower | |
blade | |
Attachment details ...  |
1655 Serial Number Location | |
|---|---|
 | |
Left side of tractor, just behind engine bay. |
1655 Serial Numbers | |
|---|---|
1976 | 1 |
1977 | 854 |
1978 | 3692 |
1979 | 3822 |
FAQ: How to read a serial number table. | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
The MF 1655 & 1855 are new published in 1977, by Massey Ferguson | |
Operator's Manual 1655 and 1855 (1448 382 M2) published in 1977 | |
Lawn and Garden Tractors published in 1977, by Massey Ferguson |
