sabre lawn tractors 2048hv
 | 1998 - 1999
Garden SeriesGarden tractor | 1998 - 1999 | Garden Series | Garden tractor |
|---|---|---|---|---|
1998 - 1999 | ||||
Garden Series | ||||
Garden tractor | ||||
1998 - 1999 | |
|---|---|
Garden Series | |
Garden tractor |
Production | |
|---|---|
Manufacturer | Sabre (a part of John Deere) |
Garden tractor | |
Built in Horicon, Wisconsin, USA | |
Sabre 2048HV Engine | |
|---|---|
20HP Briggs & Stratton 568cc 2-cyl gasoline | |
Fuel tank | 3 gal
11.4 L |
Engine details ...  | |
Sabre 2048HV Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Steering | manual sector-and-pinion |
Disc brakes | |
Open operator station. | |
Photos | |
|---|---|
 | |
Sabre 2048HV photos...  |
Tractor hitch | |
|---|---|
Type | sleeve hitch OptOptional |
Power Take-off (PTO) | |
|---|---|
Front PTO | independent |
Clutch | electric |
Dimensions & Tires | |
|---|---|
Wheelbase | 48.5 inches
123 cm |
Full dimensions and tires ...  | |
Sabre 2048HV attachments | |
|---|---|
48" mid-mount mower deck | |
snowblower | |
blade | |
Attachment details ...  |

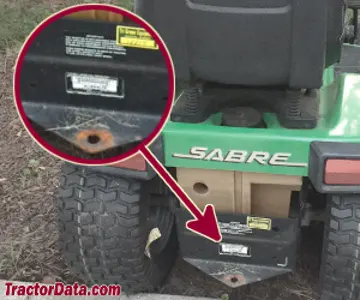

2048HV Serial Number Location | |
|---|---|
 | |
Serial number decal on the rear of tractor above the drawbar. |
2048HV Serial Numbers | |
|---|---|
1998 | 010001 |
1999 | 020001 |
FAQ: How to read a serial number table. | |
Electrical | |
|---|---|
Ground | negative |
Charging system | flywheel alternator |
Charging amps | 16 |
Battery CCA | 340 |
Battery volts | 12 |
Battery Group | BCI U1 |
References | |
|---|---|
 | |
Lawn and Garden Product Information Handbook published in 1998, by John Deere | |
Commercial & Consumer Equipment Sales Manual published in 1999, by John Deere | |
Grounds Care Equipment Purchasing Guide published in 1999, by John Deere | |
Sabre Lawn Tractors - Yard Tractors - Garden Tractors published in 1999, by John Deere |
