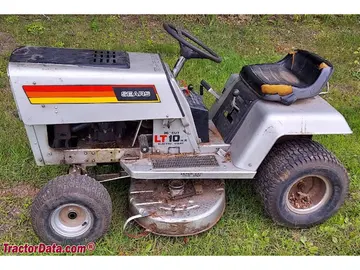

sears lawn tractors lt 10
 | 1975 - 1978
Lawn tractorMurray built | 1975 - 1978 | Lawn tractor | Murray built |
|---|---|---|---|---|
1975 - 1978 | ||||
Lawn tractor | ||||
Murray built | ||||
1975 - 1978 | |
|---|---|
Lawn tractor | |
Murray built |
Production | |
|---|---|
Distributor | Sears |
Manufacturer | Murray |
Lawn tractor | |
Original price | $779 (1977 ) |
$839 (1978 ) | |
Variants | |
|---|---|
502.25516 | trickle-charge start |
3667 | similar Murray model |
Sears LT/10 Engine | |
|---|---|
10HP Briggs & Stratton 399cc 1-cyl gasoline | |
Fuel tank | 1 gal
3.8 L |
Engine details ...  | |
Sears LT/10 Transmission | |
|---|---|
3-speed gear | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Disc brakes | |
Open operator station. |
Photos | |
|---|---|
 | |
Sears LT/10 photos...  |
Dimensions & Tires | |
|---|---|
Weight | 480 lbs
217 kg |
Front tire | 15x6.00-6 |
Rear tire | 18x8.50-8 |
Full dimensions and tires ...  | |
Sears LT/10 attachments | |
|---|---|
36" mid-mount mower deck | |
blade | |
Attachment details ...  |
LT/10 Serial Numbers | |
|---|---|
1975 | 502.2583 (model code) |
1976 | ---- |
1977 | 502.25089 (model code) |
1978 | 502.25514 (model code) |
FAQ: How to read a serial number table. | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
Riding Mowers and Lawn Tractors published in 1977, by Sears | |
Fall Suburban, Farm and Ranch Catalog published in 1975, by Sears | |
Spring Suburban, Farm and Ranch Catalog published in 1975, by Sears | |
Spring and Summer Catalog published in 1975, by Sears | |
Farm and Ranch Catalog published in 1977, by Sears* | |
Spring/Summer Catalog published in 1978, by Sears | |
*Publication contains known errors. |
