simplicity lawn tractors 7114
 | 1979 - 1986
7100 系列花园拖拉机 | 1979 - 1986 | 7100系列 | 花园拖拉机 |
|---|---|---|---|---|
1979 - 1986 | ||||
7100系列 | ||||
花园拖拉机 | ||||
1979 - 1986 | |
|---|---|
7100系列 | |
花园拖拉机 |
生产 | |
|---|---|
制造商 | 简单 |
花园拖拉机 | |
在美国威斯康星州港口华盛顿建造 | |
型号 | |
|---|---|
九百一十四 | 相似的Deutz-Allis型号 |
简洁7114发动机 | |
|---|---|
14马力考勒512cc 1缸汽油 | |
燃油箱 | 3 加仑
11.4 升 |
发动机详情...  | |
简洁7114变速器 | |
|---|---|
静液 | |
4速变速箱 | |
变速箱详情...  |
机械的 | |
|---|---|
两轮驱动 | |
手动转向 | |
打开操作员站位。 |
尺寸与轮胎 | |
|---|---|
轮距 | 50.7 英寸
128 厘米 |
前轮胎 | 16x6.50-8 |
后轮胎 | 23x8.50-12 |
完全尺寸和轮胎...  | |
简单 7114 附件 | |
|---|---|
42英寸中置式割草机平台 | |
48英寸中置割草机 | |
扫雪机 | |
刀片 | |
附件详情...  |

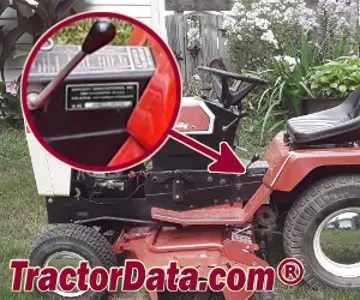

7114 序列号位置 | |
|---|---|
 | |
拖拉机座椅前方，左侧车架上的序列号标签。 |
电气 | |
|---|---|
地面 | 负面 |
电池电压 | 12 |
参考文献 | |
|---|---|
 | |
操作手册 7100 系列 (1679625) 于 1986 年出版 | |
1979年由Simplicity出版的草坪和花园设备 | |
1982年由Simplicity出版的骑乘割草机和花园拖拉机 |
