simplicity lawn tractors conquest 20h
 | 2002 - 2005
Conquest SeriesGarden tractor | 2002 - 2005 | Conquest Series | Garden tractor |
|---|---|---|---|---|
2002 - 2005 | ||||
Conquest Series | ||||
Garden tractor | ||||
2002 - 2005 | |
|---|---|
Conquest Series | |
Garden tractor |
Production | |
|---|---|
Manufacturer | Simplicity |
Garden tractor | |
Original price was $5,275 in 2005 | |
Variants | |
|---|---|
2720H | similar Massey Ferguson model |
1720H | similar AGCO model |
Simplicity Conquest 20H Engine | |
|---|---|
20HP Briggs & Stratton 569cc 2-cyl gasoline | |
Fuel tank | 4 gal
15.1 L |
Engine details ...  | |
Simplicity Conquest 20H Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station. |

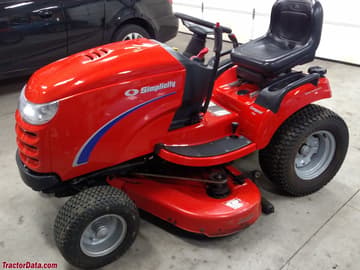

Photos | |
|---|---|
 | |
Simplicity Conquest 20H photos...  |
Tractor hitch | |
|---|---|
Type | sleeve hitch OptOptional |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | electric |
Dimensions & Tires | |
|---|---|
Wheelbase | 53 inches
134 cm |
Weight | 586 lbs
265 kg |
Front tire | 16x6.5-8 |
Rear tire | 23x10.5-12 |
Full dimensions and tires ...  | |
Simplicity Conquest 20H attachments | |
|---|---|
44" mid-mount mower deck | |
50" mid-mount mower deck | |
54" mid-mount mower deck | |
snowblower | |
blade | |
Attachment details ...  |
Electrical | |
|---|---|
Charging amps | 16 |
Battery CCA | 340 |
Battery volts | 12 |
References | |
|---|---|
 | |
The Way To A Beautiful Lawn published in 2003, by Simplicity | |
The Way To A Beautiful Lawn published in 2004, by Simplicity | |
The Way To A Beautiful Lawn published in 2005, by Simplicity | |
Product Guide 2003 published by Simplicity |
