steiger panther iv ks 325
![]() | 1984 - 1985
IV 系列四轮驱动(4WD)拖拉机 | 1984 - 1985 | IV系列 | 四轮驱动(4WD)拖拉机 |
|---|---|---|---|---|
1984 - 1985 | ||||
IV系列 | ||||
四轮驱动(4WD)拖拉机 | ||||
1984 - 1985 | |
|---|---|
IV系列 | |
四轮驱动(4WD)拖拉机 |
生产 | |
|---|---|
制造商 | 斯泰格 |
四轮驱动(4WD)拖拉机 | |
在美国北达科他州法戈建造 | |
型号 | |
|---|---|
CM325 | 卡特彼勒换挡 |
CS325 | 卡特彼勒功率换挡 |
公里325 | 康明斯变速器 |
KS325 | 康明斯动力换挡 |
SM325 | 小松齿轮变速器 |
施泰格豹 IV KS-325 发动机 | |
|---|---|
康明斯 14.0L 6缸柴油机 | |
燃油箱 | 225 加仑
851.6 升 |
发动机详情... | |
Steiger Panther IV KS-325 变速箱 | |
|---|---|
10速动力换挡 | |
变速箱详情... |
施泰格豹 IV KS-325 动力 | |
|---|---|
引擎 | 325 马力
242.4 千瓦 |
牵引钩(声明) | 265 马力
197.6 千瓦 |
机械的 | |
|---|---|
四轮驱动 | |
最终驱动 | 舷外行星 |
关节式动力转向 | |
液压碟刹 | |
配备空调的标准驾驶室。 | |
照片 | |
|---|---|
![]() | |

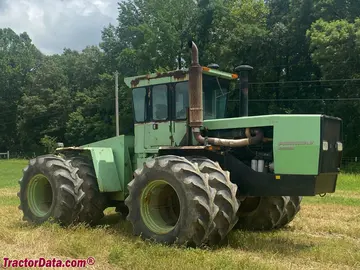

Steiger Panther IV KS-325 图片... |
液压 | |
|---|---|
类型 | 开式中心 |
压力 | 2250 磅
155.1 巴 |
阀门 | 3到5 |
泵流量 | 28.6 加仑/分钟
108.3 升/分钟 |
拖拉机挂钩 | |
|---|---|
后类型 | III 可选 |
尺寸与轮胎 | |
|---|---|
轮距 | 132.5 英寸
336 厘米 |
重量 | 26994 磅
12244 公斤 |
前轮胎 | 20.8-38 |
后轮胎 | 20.8-38 |
完全尺寸和轮胎... | |
豹式IV KS-325 序列号 | |
|---|---|
一九八四 | 150-03001 |
一九八五 | 150-05001 |
常见问题解答:如何读取序列号表。 | |
电气 | |
|---|---|
地面 | 负面 |
充电系统 | 发电机 |
充电电流 | 九十 |
电池 | 4 |
电池电压 | 12 |
参考文献 | |
|---|---|
![]() | |
1984年出版的Cougar IV/Panter IV Steigermatic |
