steiger turbo tiger ii st 320
![]() | 1974 - 1976
II 系列四轮驱动(4WD)拖拉机 | 1974 - 1976 | II系列 | 四轮驱动(4WD)拖拉机 |
|---|---|---|---|---|
1974 - 1976 | ||||
II系列 | ||||
四轮驱动(4WD)拖拉机 | ||||
1974 - 1976 | |
|---|---|
II系列 | |
四轮驱动(4WD)拖拉机 |
生产 | |
|---|---|
制造商 | 斯泰格 |
四轮驱动(4WD)拖拉机 | |
在美国北达科他州法戈建造 | |
原始价格为1975年的52,000美元 | |
施泰格涡轮虎II ST-320 发动机 | |
|---|---|
康明斯 14.8L 8 缸柴油机 | |
发动机详情... |
施泰格涡轮虎II ST-320 变速箱 | |
|---|---|
10速 | |
变速箱详情... |
Steiger Turbo Tiger II ST-320 动力 | |
|---|---|
引擎 | 320 马力
238.6 千瓦 |
牵引钩(声明) | 262 马力
195.4 千瓦 |
动力输出(声称) | 305 马力
227.4 千瓦 |
牵引钩(测试) | 262.13 马力
195.5 千瓦 |
性能测试详情... | |
机械的 | |
|---|---|
四轮驱动 | |
最终驱动 | 舷外行星 |
关节式动力转向 | |
液压碟刹 | |
驾驶室标准配置,可选暖气和空调。 | |
照片 | |
|---|---|
![]() | |

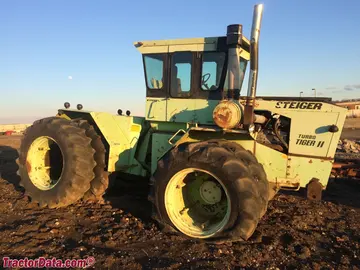

Steiger Turbo Tiger II ST-320 图片... |
液压 | |
|---|---|
类型 | 开式中心 |
阀门 | 3 |
泵流量 | 25 加仑/分钟
94.6 升/分钟 |
总流量 | 43 加仑/分钟
162.8 升/分钟 |
转向流量 | 18 加仑/分钟
68.1 升/分钟 |
拖拉机挂钩 | |
|---|---|
后类型 | III 可选 |
尺寸与轮胎 | |
|---|---|
轮距 | 121.5 英寸
308 厘米 |
重量 | 24000 磅
10886 公斤 |
前轮胎 | 23.1-30 |
后轮胎 | 23.1-30 |
完全尺寸和轮胎... | |
涡轮虎II ST-320序列号 | |
|---|---|
一九七四年 | 30101 |
一九七五 | 三万零一百九十八 |
一九七六年 | 30430 |
常见问题解答:如何读取序列号表。 | |
电气 | |
|---|---|
充电系统 | 发电机 |
充电电流 | 六十二 |
电池电压 | 12 |
参考文献 | |
|---|---|
![]() | |
1974年由Steiger出版的四轮驱动Agri-Power |
