twin city 12 20
![]() | 1919 - 1926
标准履带拖拉机 | 1919 - 1926 | 标准履带拖拉机 |
|---|---|---|---|
1919 - 1926 | |||
标准履带拖拉机 | |||
1919 - 1926 | |
|---|---|
标准履带拖拉机 |
生产 | |
|---|---|
制造商 | 双城 |
标准履带拖拉机 | |
建于美国明尼苏达州明尼阿波利斯 | |
总建造数 | 9,700 |

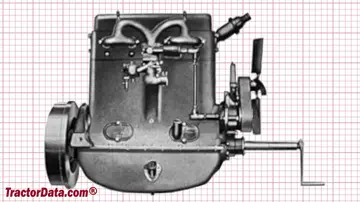

双城 12-20 发动机 | |
|---|---|
双城 5.6升 4缸 煤油 | |
燃油箱 | 20 加仑
75.7 升 |
辅助燃料 | 1 加仑
3.8 升 |
发动机详情... | |

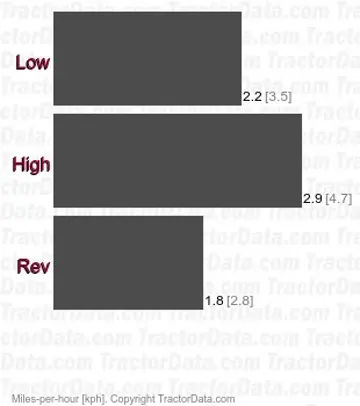

双城12-20变速箱 | |
|---|---|
两档位齿轮 | |
变速箱详情... |
双城12-20动力 | |
|---|---|
引擎 | 35 马力
26.1 千瓦 |
牵引钩(声明) | 12 马力
8.9 千瓦 |
皮带(声明) | 20 马力
14.9 千瓦 |
犁 | 3(14英寸) |
牵引钩(测试) | 18.43 马力
13.7 千瓦 |
皮带(已测试) | 27.93 马力
20.8 千瓦 |
性能测试详情... | |
机械的 | |
|---|---|
两轮驱动 | |
最终驱动 | 公牛齿轮 |
手动转向 | |
打开操作员站位。 | |

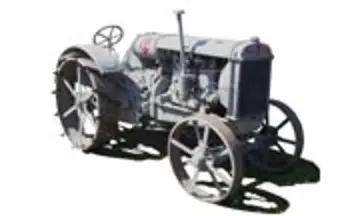

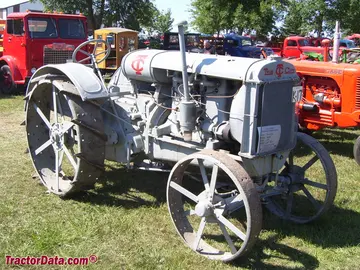

照片 | |
|---|---|
![]() | |
双城 12-20 照片... |
尺寸与轮胎 | |
|---|---|
轮距 | 84 英寸
213 厘米 |
重量 | 5000 磅
2268 公斤 |
前轮胎 | 34x5.75 |
后轮胎 | 50x12 |
完全尺寸和轮胎... | |

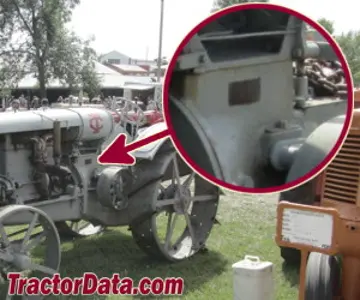

12-20 序列号位置 | |
|---|---|
![]() | |
变速器左前方。 |
皮带轮 | |
|---|---|
直径 | 16英寸
40厘米 |
宽度 | 6.5 英寸
16 厘米 |
转速 | 650 |
速度 | 2700 英尺/分钟
822.96 米/分钟 |
参考文献 | |
|---|---|
![]() | |
双城煤油拖拉机于1918年由明尼阿波利斯钢铁机械公司出版 |
