yanmar ym336
![]() | 1980 - 1991
紧凑型实用拖拉机 | 1980 - 1991 | 紧凑型多功能拖拉机 |
|---|---|---|---|
1980 - 1991 | |||
紧凑型多功能拖拉机 | |||
1980 - 1991 | |
|---|---|
紧凑型多功能拖拉机 |
生产 | |
|---|---|
制造商 | 洋马 |
紧凑型多功能拖拉机 | |
在日本制造 | |
原始价格是1991年的12400美元 | |
型号 | |
|---|---|
YM336 | 二轮驱动 |
YM336D | 四轮驱动 |
扬马YM336发动机 | |
|---|---|
扬马 1.5L 3缸柴油 | |
燃油箱 | 8.5 加仑
32.2 升 |
发动机详情... | |
扬马YM336变速箱 | |
|---|---|

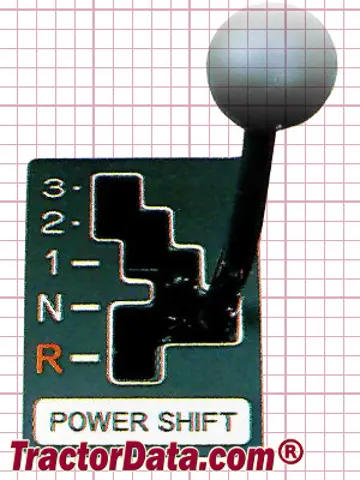

12速三档功率换挡 | |
变速箱详情... |
扬马YM336动力 | |
|---|---|
发动机 (毛) | 33 马力
24.6 千瓦 |
动力输出(声称) | 26.5 马力
19.8 千瓦 |
牵引钩(测试) | 22.46 马力
16.7 千瓦 |
动力输出 (已测试) | 26.98 马力
20.1 千瓦 |

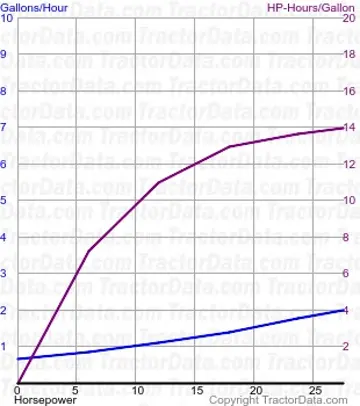

性能测试详情... | |
机械的 | |
|---|---|
二轮或四轮驱动 | |
差速锁 | 机械后部 |
助力转向 | |
机械鼓式刹车 | |
两柱型翻转防滚架. | |
照片 | |
|---|---|
![]() | |
Yanmar YM336 图片... |
液压 | |
|---|---|
类型 | 开式中心 |
压力 | 2204 psi
152.0 巴 |
泵流量 | 8.2 加仑/分钟
31.0 升/分钟 |
拖拉机挂钩 | |
|---|---|
后类型 | 我 |
控制 | 位置和牵引力控制 |
后起升 (在端部) | 2116 磅
959 公斤 |
后举升 (24英寸/610毫米) | 1450 磅
657 公斤 |
动力输出 (PTO) | |
|---|---|
后 PTO | 直播 |
离合器 | 过载干式离合器 |
后部动力输出类型 | 540/1000 (1.375) |
尺寸与轮胎 | |
|---|---|
轮距 | 76.8 英寸
195 厘米 |
重量 | 2627到3400磅 |
前轮胎 | 5.50-16 |
2WD 后轮 | 12.4-28 |
完全尺寸和轮胎... | |
扬马YM336配件 | |
|---|---|
前置装载机 | |
附件详情... |
电气 | |
|---|---|
地面 | 负面 |
电池电压 | 12 |
参考文献 | |
|---|---|
![]() | |
YFL系列装载机于1987年由圆山发布 | |
1979年由扬马出版的销售宣传手册 | |
1987年由扬马出版的YM276/336 27马力和33马力紧凑型拖拉机 | |
*出版物包含已知错误。 |
