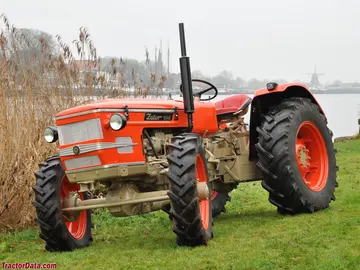

zetor 5545
 | 1968 - 1972 | 1968 - 1972 |
|---|---|---|
1968 - 1972 | ||
1968 - 1972 |
|---|
生产 | |
|---|---|
制造商 | 捷拖 |
建于捷克斯洛伐克的布尔诺 | |
型号 | |
|---|---|
5511 | 2WD 开放 |
5545 | 四轮驱动开启 |
五千六百十一 | 2WD驾驶室 |
Zetor 5545 发动机 | |
|---|---|
Zetor 3.1L 4缸柴油 | |
发动机详情...  |
Zetor 5545 变速箱 | |
|---|---|
10速档位 | |
变速箱详情...  |
Zetor 5545 Power | |
|---|---|
引擎 | 56 马力
41.8 千瓦 |
牵引钩（声明） | 48 马力
35.8 千瓦 |
动力输出(声称) | 53.9 马力
40.2 千瓦 |
机械的 | |
|---|---|
四轮驱动 | |
最终驱动 | 锥齿轮 |
差速锁 | 机械后部 |
手动转向 | |
液压鼓式刹车 | |
打开操作员站位。 | |
照片 | |
|---|---|
 | |
Zetor 5545 图片...  |
液压 | |
|---|---|
类型 | 开式中心 |
压力 | 2134 磅/平方英寸
147.1 巴 |
阀门 | 1 |
拖拉机挂钩 | |
|---|---|
后类型 | 二/一 |
控制 | 位置和牵引力控制 |
后起升 (在端部) | 3080 磅
1397 公斤 |
动力输出 (PTO) | |
|---|---|
后 PTO | 直播 |
后部动力输出类型 | 540 (1.375) |
发动机转速 | 540@2000 |
尺寸与轮胎 | |
|---|---|
轮距 | 89英寸
226厘米 |
重量 | 5622 磅
2550 公斤 |
前轮胎 | 8-24 |
后轮胎 | 13-28 |
完全尺寸和轮胎...  | |
参考文献 | |
|---|---|
 | |
5511 - 5545 - 5611 由Zetor发布* | |
*出版物包含已知错误。 |
