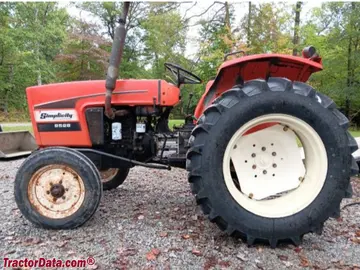

simplicity 9528
![]() | 1978 - 1983
9500er-ReiheKompakt-NutzfahrzeugHinomoto gebaut | 1978 - 1983 | 9500er Serie | Kompakt-Bau-Traktor | Hinomoto gebaut |
|---|---|---|---|---|---|
1978 - 1983 | |||||
9500er Serie | |||||
Kompakt-Bau-Traktor | |||||
Hinomoto gebaut | |||||
1978 - 1983 | |
|---|---|
9500er Serie | |
Kompakt-Bau-Traktor | |
Hinomoto gebaut |
Produktion | |
|---|---|
Händler | Einfachheit |
Hersteller | Hinomoto |
Kompakt-Bau-Traktor | |
In Osaka, Japan gebaut | |
Varianten | |
|---|---|
E280 | ähnliches Hinomoto Modell |
5030 | ähnliches Allis Chalmers Modell |
Simplicity 9528 Motor | |
|---|---|
Toyosha 1.5L 2-Zylinder Diesel | |
Motordetails ... |

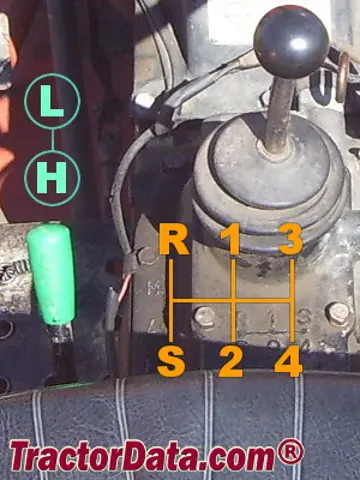

Simplicity 9528 Getriebe | |
|---|---|
8-Gang-Schaltgetriebe ohne Synchronisation | |
12-Gang-Getriebe ohne Synchronisation | |
Getriebe Details ... |
Simplicity 9528 Power | |
|---|---|
Motor | 28 PS
20,9 kW |
Zwillingskupplung (angegeben) | 26 PS
19,4 kW |
Mechanisch | |
|---|---|
Zweiradantrieb | |
Differentialsperre | mechanische Hinterachse |
Manuelle Lenkung | |
Trommelbremsen | |
Öffnungs-Bedienstation. Optionale zweipufferartige ROPS und Verdeck. | |
Fotos | |
|---|---|
![]() | |
Simplicity 9528 Fotos... |
Kapazität | |
|---|---|
Kraftstoff | 7 Gallonen
26.5 Liter |
Hydrauliksystem | 6.7 Gallonen
25.4 Liter |
Hydraulik | |
|---|---|
Typ | offen mittig |
Kapazität | 6.7 Gallonen
25.4 Liter |
Gesamtstrom | 5,44 gpm
20,6 lpm |
Traktoranbausystem | |
|---|---|
Hinterer Typ | Ich |
Steuerung | Positionsregelung |
Kraftentnahme (PTO) | |
|---|---|
Heck-PTO | kontinuierlich |
Heck-PTO Typ | 540 |
Motordrehzahl | 540@2320 |
Abmessungen & Reifen | |
|---|---|
Radstand | 61,8 Zoll
156 cm |
Gewicht | 2100 lbs
952 kg |
Vorderreifen | 5.00x15 |
Hinterreifen | 12,4x24 |
Vollständige Abmessungen und Reifen ... | |
Simplicity 9528 Zubehör | |
|---|---|
60" Heckmähwerk | |
Befestigungsdetails ... |
9528 Seriennummer Standort | |
|---|---|
![]() | |
Seriennummernschild unter dem Lenkrad, vor dem Schalthebel. |
Elektrisch | |
|---|---|
Boden | negativ |
Ladesystem | Hitachi LR115-58 Lichtmaschine |
Ladeampere | 15 |
Ladespannung | 12 |
Batteriespannung | 12 |
Batterie Ah | 70 |
Referenzen | |
|---|---|
![]() | |
Bedienungsanleitung 5020-5030 9523-9528 (2097132) veröffentlicht 1978 |
