farmall f 20

1932 - 1939

Row-Crop tractor

Row-Crop tractor

NTTL 221: kerosene 4-speed 2WD

NTTL 264: kerosene 4-speed 2WD

NTTL 276: kerosene 4-speed 2WD

Kerosene 4-speed 2WD April 3 - 16, 1934 Link: Nebraska Tractor Test 221 file

Belt power (max)

23.11 hp 17.2 kW

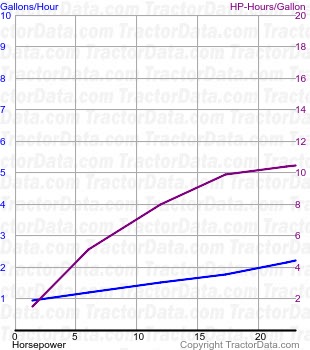

Belt fuel use (max)

2.2 gal/hour 8.3 l/hour

Drawbar performance

Max power

15.39 hp 11.5 kW

Gear 2 used for power test.

Max pull

2334 lbs 1058 kg

Gear 1 used for pull test.

Kerosene 4-speed 2WD July 20 - 29, 1936 Link: Nebraska Tractor Test 264 file

Belt power (max)

28.0 hp 20.9 kW

Belt fuel use (max)

3.1 gal/hour 11.7 l/hour

Drawbar performance

Max power

20.5 hp 15.3 kW

Gear 3 used for power test.

Max pull

2799 lbs 1269 kg

Gear 1 used for pull test.

Kerosene 4-speed 2WD November 5 - 12, 1936 Link: Nebraska Tractor Test 276 file

Belt power (max)

27.84 hp 20.8 kW

Belt fuel use (max)

2.8 gal/hour 10.6 l/hour

Drawbar performance

Max power

20.66 hp 15.4 kW

Gear 3 used for power test.

Max pull

2927 lbs 1327 kg

Gear 1 used for pull test.
