ferguson to 30

1951 - 1954

Utility tractor

Utility tractor

Continental Z-129

gasoline

4-cylinder 8-valve

liquid-cooled I-head

Displacement

129 ci 2.1 L

Bore/Stroke

3.25x3.875 inches 83 x 98 mm

Fuel system

Marvel Schebler TSX 458 updraft carburetor

Air cleaner

oil bath

Compression

6.5:1

Rated RPM

2000

Torque

107 lb-ft 145.1 Nm

Torque RPM

1100

Starter

Delco 1109457

Starter volts

6

Coolant capacity

10 qts 9.5 L

Sparkplug

AC Delco 86



Champion 8

Intake valve clearance

0.015 inches (cold) 0.381 mm

Exhaust valve clearance

0.015 inches (cold) 0.381 mm

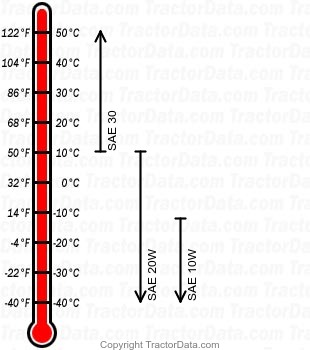

Oil capacity

5 qts (crankcase) 4.7 L



1 qts (filter) 0.9 L
