new holland 5610
 | 1982 - 1993
Utility tractor | 1982 - 1993 | Utility tractor |
|---|---|---|---|
1982 - 1993 | |||
Utility tractor | |||
1982 - 1993 | |
|---|---|
Utility tractor |
Note: the New Holland model 5610 is the same as the Ford 5610. The following data is from the 5610 listing. |
|---|
Transmission options | |
|---|---|
8-speed | |
8-speed synchromesh | |
16-speed partial power shift | |
16-speed synchromesh partial power shift |
Transmission | |
|---|---|
Transmission | Dual-range |
Gears | 8 forward and 2 reverse |
Clutch | 305mm dry disc |

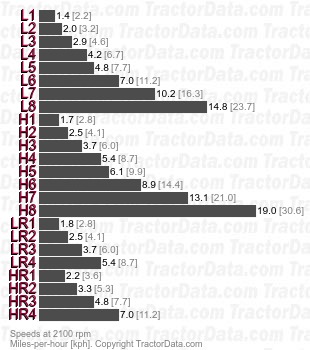

Speeds | |
|---|---|
With 18.4x34 rear tires. | |
 |
Transmission | |
|---|---|
Transmission | Dual-range |
Type | synchromesh |
Gears | 8 forward and 4 reverse |
Speeds | |
|---|---|
With 18.4x34 rear tires. | |
 |
Transmission | |
|---|---|
Transmission | Dual Power |
Type | partial power shift |
Gears | 16 forward and 4 reverse |
The Dual Power adds a shift-on-the-move to an under-speed on the basic 8/2 gear transmission. | |
Speeds | |
|---|---|
With 18.4x34 rear tires. | |
 |
Transmission | |
|---|---|
Transmission | Dual Power |
Type | synchromesh partial power shift |
Gears | 16 forward and 8 reverse |
A shift-on-the-move under-speed added to the 8/4 synchromesh transmission. | |
Speeds | |
|---|---|
With 18.4x34 rear tires. | |
 |
