new holland 8770
 | 1993 - 2000
70 Genesis SeriesRow-Crop tractor | 1993 - 2000 | 70 Genesis Series | Row-Crop tractor |
|---|---|---|---|---|
1993 - 2000 | ||||
70 Genesis Series | ||||
Row-Crop tractor | ||||
1993 - 2000 | |
|---|---|
70 Genesis Series | |
Row-Crop tractor |
Series map: 8770A↑ 2001-2003867087708870170.0hp190.0hp210.0hp8770↓ 1993-2002
Note: the New Holland model 8770 is the same as the Ford 8770. The following data is from the 8770 listing. |
|---|
Engine Detail | |
|---|---|
Ford | |
turbocharged diesel | |
6-cylinder | |
liquid-cooled inline | |
Displacement | 456 ci
7.5 L |
Bore/Stroke | 4.4x5.0 inches
112 x 127 mm |
Power | 190 hp
141.7 kW |
Compression | 17.5:1 |
Rated RPM | 2100 |
Firing order | 1-5-3-6-2-4 |
Starter volts | 12 |
Starter power | 6 hp
4.5 kW |
Coolant capacity | 26.4 qts
25.0 L |

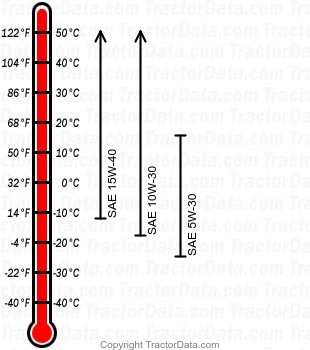

Engine Oil | |
|---|---|
 | |
Oil capacity | 22 qts
20.8 L |
