new holland tn55
 | 1999 - 2004
TN SeriesUtility tractor | 1999 - 2004 | TN Series | Utility tractor |
|---|---|---|---|---|
1999 - 2004 | ||||
TN Series | ||||
Utility tractor | ||||
1999 - 2004 | |
|---|---|
TN Series | |
Utility tractor |
Production | |
|---|---|
Manufacturer | New Holland |
Utility tractor | |
Built in Jesi, Italy | |
Original price was $30,000 in 2000 | |
Variants | |
|---|---|
TN55 | ROPS |
TN55D | cab |
TN55S | SuperSteer |
New Holland TN55 Engine | |
|---|---|
Iveco 2.9L 3-cyl diesel | |
Engine details ...  |
New Holland TN55 Transmissions | |
|---|---|
8-speed gear | |
8-speed partially synchronized | |
16-speed partially synchronized | |
32-speed two-speed power shift | |
Transmission details ...  |
New Holland TN55 Power | |
|---|---|
Engine (gross) | 53 hp
39.5 kW |
Engine (net) | 50 hp
37.3 kW |
PTO (claimed) | 42 hp
31.3 kW |
Drawbar (tested) | 35.3 hp
26.3 kW |
PTO (tested) | 43.0 hp
32.1 kW |
Performance test details ...  | |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Final drives | planetary |
Power steering | |
Differential hydraulic wet disc brakes | |
Two-post folding ROPS. Cab optional. | |

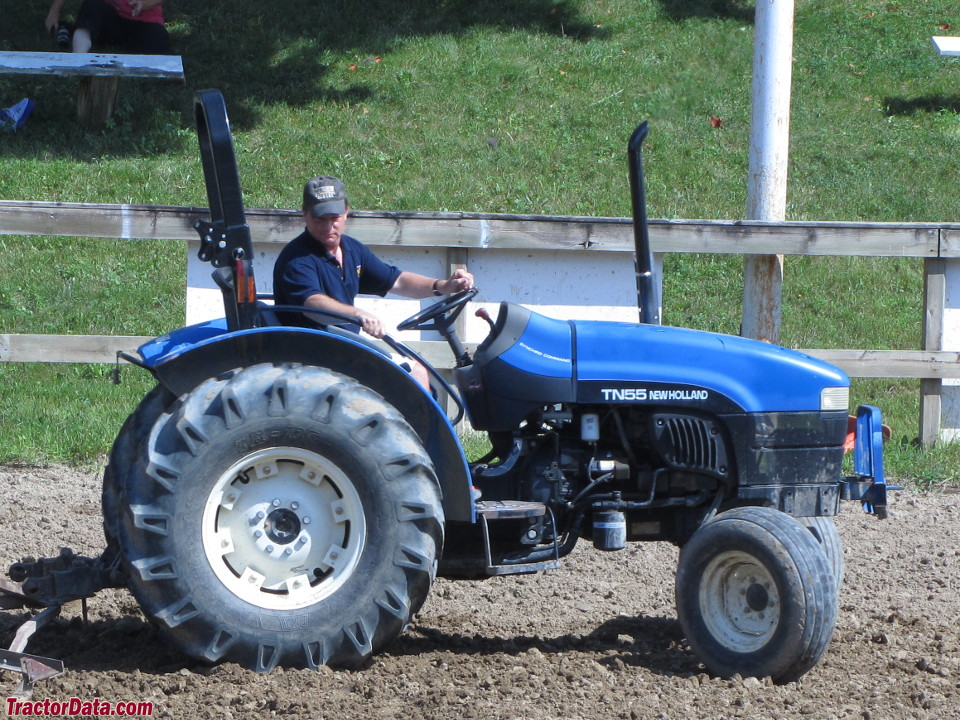

Photos | |
|---|---|
 | |
New Holland TN55 photos...  |
Capacity | |
|---|---|
Fuel | 17.3 gal
65.5 L |
Hydraulic system | 11.1 gal
42.0 L |
Hydraulics | |
|---|---|
Type | open center |
Capacity | 11.1 gal
42.0 L |
Pressure | 2755 psi
190.0 bar |
Valves | 1 or 2 |
Pump flow | 12.4 gpm
46.9 lpm |
| 16.9 gpmOptOptional
64.0 lpm |
Steering flow | 7.2 gpm
27.3 lpm |
| 9.2 gpm*With power shuttle transmission option.
34.8 lpm |
Tractor hitch | |
|---|---|
Rear Type | II |
Rear lift (at 24"/610mm) | 3962 lbs
1797 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Clutch | dry disc |
Rear PTO Type | 540 (1.375) |
Dimensions & Tires | |
|---|---|
2WD ROPS Wheelbase | 81.5 inches
207 cm |
4WD ROPS Wheelbase | 78.9 inches
200 cm |
2WD Cab Wheelbase | 83.9 inches
213 cm |
4WD Cab Wheelbase | 81.3 inches
206 cm |
4WD SuperSteer Wheelbase | 93.5 inches
237 cm |
Weight | 4565 to 5675 pounds |
Front tire | 7.50-16 |
2WD Rear tire | 14.9-28 |
Full dimensions and tires ...  | |
New Holland TN55 attachments | |
|---|---|
front-end loader | |
Attachment details ...  |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
ROPS Charging amps | 45 |
Cab Charging amps | 65 |
Battery CCA | 730 |
Battery volts | 12 |
References | |
|---|---|
 | |
New Holland TND/TNS Tractors published in 1998 | |
New Holland TN/TND/TNS Tractors published in 2002 | |
New! New Holland TND/TNS Tractors 42 to 62 PTO hp published in 1998 | |
TN55D TN65D TN75D TN55S TN65S TN75S Operator's Manual (86572984) published in 1998 |
