AGCO Allis 8775

The AGCO Allis 8775 is a tractor produced by Agco Allis. It is equipped with a 359 ci 5.9 L engine. The rated power output is 96.60 hp 72.0 kW. Transmission: Quadrashift. Operating weight: 10000 to 11300 pounds.

Overview

	1998 - 1999 8700 SeriesRow-Crop tractor
1998 - 1999
8700 Series
Row-Crop tractor

Production
Manufacturer	AGCO Allis (a part of AGCO)
Row-Crop tractor
Built in Beauvais, France
Original price	$39,519 (1998 2WD ROPS )
	$51,587 (1998 2WD Cab )
	$46,450 ( 4WD ROPS )
	$58,804 ( 4WD Cab )

Variants
6710	similar White model

AGCO Allis 8775 Transmission
32-speed four-speed power shift
Transmission details ...

AGCO Allis 8775 Power
PTO (claimed)	95 hp 70.8 kW
PTO (tested)	101.99 hp 76.1 kW
Performance test details ...

Mechanical
Two- or four-wheel drive
Final drives	inboard planetary
Differential lock	electro-hydraulic rear
Power steering
Hydraulic wet disc brakes
Cab standard with air-conditioning. Two-post fixed ROPS available.

Hydraulics
Type	closed center
Pressure	2900 psi 200.0 bar
Valves	2 or 3
Pump flow	27.7 gpm 104.8 lpm
SCV flow	27.7 gpm 104.8 lpm

Tractor hitch
Rear Type	II
Control	electronic draft sensing
Rear lift (at 24"/610mm)	7000 lbs 3175 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/1000 (1.375)

Dimensions & Tires
Wheelbase	112.6 inches 286 cm
Weight	10000 to 11300 pounds
Front tire	11.00-16
Rear tire	16.9R-38
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Batteries	2
Battery CCA	590
Battery volts	12

References
New 8700/9700 Series Tractors published in 1997, by AGCO
8700 Series Tractors published in 2001, by AGCO
8775 - 8785 published in 1997, by AGCO

Engine

Engine options
SisuDiesel 6.6L 6-cyl diesel
Cummins 5.9L 6-cyl diesel

Engine Detail — 402 ci / 6.6 L Diesel

Manufacturer	SisuDiesel 666
Fuel Type	Diesel
Configuration	6-cylinder, liquid-cooled
Displacement	402 ci 6.6 L
Bore/Stroke	4.252x4.724 inches 108 x 120 mm
Compression	16.5:1
Rated RPM	2200
Starter	electric
Starter volts	12

Engine Detail — 359 ci / 5.9 L Diesel

Manufacturer	Cummins B5.9T
Fuel Type	Diesel
Configuration	6-cylinder, liquid-cooled
Displacement	359 ci 5.9 L
Bore/Stroke	4.02x4.72 inches 102 x 120 mm
Compression	16.5:1
Rated RPM	2200
Starter	electric
Starter volts	12

Transmission

Transmission — Quadrashift

Transmission	Quadrashift
Type	four-speed power shift
Gears	32 forward and reverse
Clutch	wet disc

Dimensions

AGCO Allis 8775 Tires
Ag front	11.00-16
Ag rear	16.9R-38

Dimensions
Wheelbase	112.6 inches 286 cm
Length	173 inches 439 cm
Width	88 inches*Minimum width 223 cm
Height (cab)	109 inches 276 cm
2WD ROPS Shipping weight	10000 lbs 4536 kg
4WD Cab Shipping weight	11300 lbs 5125 kg
Flange rear axle
2WD Front tread	60 to 88 inches 152 to 223 cm

Tests

Tractor Tests
NTTL 1763: Cummins diesel 32-speed 4WD
NTTL 1779: Sisu diesel 32-speed 4WD

Nebraska Tractor Test 1763
Cummins diesel 32-speed 4WD September 16 - 23, 1999 Link: Nebraska Tractor Test 1763 file
PTO performance
Max power	101.99 hp 76.1 kW
Power at rated engine speed	95.62 hp 71.3 kW
Fuel use	6.1 gal/hour 23.1 l/hour
Power at rated PTO speed	100.18 hp 74.7 kW
Fuel use	5.9 gal/hour 22.3 l/hour

Nebraska Tractor Test 1779
Sisu diesel 32-speed 4WD June 2 - 6, 2000 Link: Nebraska Tractor Test 1779 file
PTO performance
Max power	99.62 hp 74.3 kW
Fuel use	6.5 gal/hour 24.6 l/hour
Power at rated engine speed	96.60 hp 72.0 kW
Fuel use	6.3 gal/hour 23.8 l/hour
Power at rated PTO speed	98.14 hp 73.2 kW
Fuel use	6.3 gal/hour 23.8 l/hour

Photos

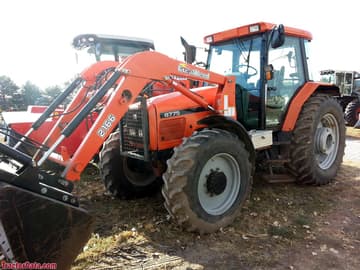

AGCO Allis 8775
