agco allis 9775
 | 1998 - 2001
9700 SeriesRow-Crop tractor | 1998 - 2001 | 9700 Series | Row-Crop tractor |
|---|---|---|---|---|
1998 - 2001 | ||||
9700 Series | ||||
Row-Crop tractor | ||||
1998 - 2001 | |
|---|---|
9700 Series | |
Row-Crop tractor |
Tractor Tests | |
|---|---|
NTTL 1794A: Navistar diesel 18-speed 4WD | |
OECD 1794: Cummins diesel 18-speed 4WD |

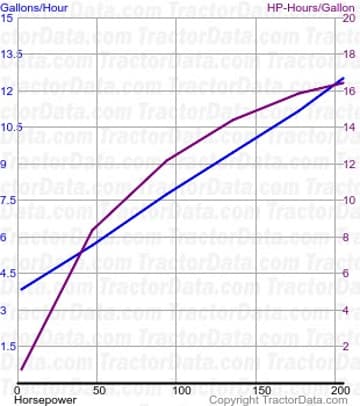

Nebraska Tractor Test 1794A | ||
|---|---|---|
 | | |
| ||
|
|---|
Nebraska Tractor Test 1794A | |
|---|---|
Navistar diesel 18-speed 4WD
September 20 - 26, 2000
Link: Nebraska Tractor Test 1794A file | |
PTO performance | |
Max power | 220.67 hp
164.6 kW |
Fuel use | 12.4 gal/hour
46.9 l/hour |
Power at rated engine speed | 204.62 hp
152.6 kW |
Fuel use | 12.5 gal/hour
47.3 l/hour |
Power at rated PTO speed | 215.80 hp
160.9 kW |
Fuel use | 12.5 gal/hour
47.3 l/hour |

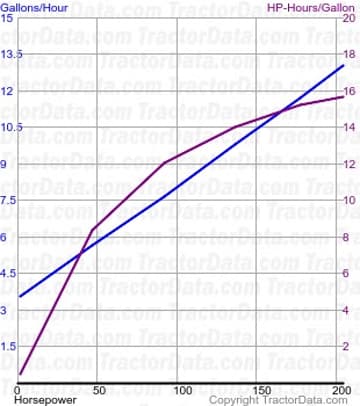

OCED Tractor Test 1794 | ||
|---|---|---|
 | | |
| ||
|
|---|
OCED Tractor Test 1794 | |
|---|---|
Cummins diesel 18-speed 4WD
May 7 - 18, 2001
Link: OCED Tractor Test 1794 file | |
PTO performance | |
Max power | 225.28 hp
168.0 kW |
Fuel use | 13.5 gal/hour
51.1 l/hour |
Power at rated engine speed | 204.33 hp
152.4 kW |
Fuel use | 13.0 gal/hour
49.2 l/hour |
Power at rated PTO speed | 221.42 hp
165.1 kW |
Fuel use | 13.4 gal/hour
50.7 l/hour |
Drawbar performance | |
Max power | 177.14 hp
132.1 kW |
Fuel use | 13.0 gal/hour
49.2 l/hour |
Gear 11 used for power test. | |
Max pull | 17996 lbs
8162 kg |
Gear 6 used for pull test. | |
