AGCO 1716H
The AGCO 1716H is a tractor produced by Agco Lawn Tractors. It is equipped with a 480 cc 29.3 ci engine. The listed engine power is Gasoline (gross): 16 hp / 11.9 kW. Transmission: Tuff Torq K66. Operating weight: 586 lbs*Weight of tractor alone. 265 kg.
Engine Power
Gasoline (gross): 16 hp / 11.9 kW
Fuel & Capacities
4 gal
15.1 L
Transmission
Tuff Torq K66
Operating Weight
586 lbs*Weight of tractor alone.
265 kg
Overview
 | 2002 - 2004
1700 SeriesGarden tractorSimplicity built
1700 Series
Garden tractor
Simplicity built |
|---|
Series map: 1716H1718H16.0hp18.0hp
Note: the AGCO model 1716H is the same as the Simplicity Conquest 16H. The following data is from the Conquest 16H listing. |
Production | |
|---|---|
Distributor | AGCO |
Manufacturer | Simplicity |
Garden tractor | |
Original price was $4,399 in 2003 | |
Variants | |
|---|---|
Conquest 16H | similar Simplicity model |
LT425 | similar Springfield model |
AGCO 1716H Engine | |
|---|---|
16HP Briggs & Stratton 480cc 2-cyl gasoline | |
Fuel tank | 4 gal
15.1 L |
Engine details ...  | |
AGCO 1716H Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station. |
Tractor hitch | |
|---|---|
Type | sleeve hitch OptOptional |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | electric |
Dimensions & Tires | |
|---|---|
Wheelbase | 53 inches
134 cm |
Weight | 586 lbs
265 kg |
Front tire | 16x6.5-8 |
Rear tire | 23x10.5-12 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Charging amps | 16 |
Battery CCA | 340 |
Battery volts | 12 |
Engine
Series map: 1716H1718H16.0hp18.0hp
Note: the AGCO model 1716H is the same as the Simplicity Conquest 16H. The following data is from the Conquest 16H listing. |
Engine Detail — 480 cc / 29.3 ci Gasoline
Manufacturer | Briggs & Stratton Vanguard |
Fuel Type | Gasoline |
Configuration | 2-cylinder, air-cooled vertical-shaft V-Twin |
Displacement | 480 cc
29.3 ci |
Bore/Stroke | 2.68x2.60 inches
68 x 66 mm |
Power (gross) | 16 hp
11.9 kW |
Air cleaner | dual dry element |
Starter | electric |
Starter volts | 12 |
Oil capacity | 1.75 qts
1.7 L |
Transmission
Series map: 1716H1718H16.0hp18.0hp
Note: the AGCO model 1716H is the same as the Simplicity Conquest 16H. The following data is from the Conquest 16H listing. |
Transmission — Tuff Torq K66
Transmission | Tuff Torq K66 |
Type | belt-driven hydrostatic |
Gears | infinite forward and reverse |
Oil capacity | 2.6 qts
2.5 L |
 | |
Dimensions
Series map: 1716H1718H16.0hp18.0hp
Note: the AGCO model 1716H is the same as the Simplicity Conquest 16H. The following data is from the Conquest 16H listing. |
AGCO 1716H Tires | |
|---|---|
Lawn/turf front | 16x6.5-8 |
Lawn/turf rear | 23x10.5-12 |
Dimensions | |
|---|---|
Wheelbase | 53 inches
134 cm |
Length | 75 inches
190 cm |
Width | 39 inches
99 cm |
Height | 47 inches
119 cm |
Weight | 586 lbs*Weight of tractor alone.
265 kg |
Max rear axle | 697 lbs
316 kg |
Front axle | Cast-iron |
Attachments
Series map: 1716H1718H16.0hp18.0hp
Note: the AGCO model 1716H is the same as the Simplicity Conquest 16H. The following data is from the Conquest 16H listing. |
Attachment overview | |
|---|---|
44" mid-mount mower deck | |
50" mid-mount mower deck | |
54" mid-mount mower deck | |
Snowblower | |
Blade | |
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments. |
Photos

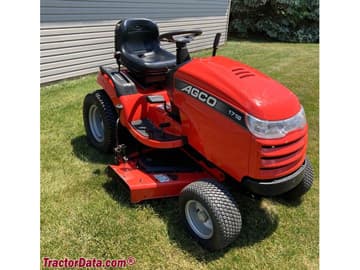

AGCO 1716H
Recommended Implements & Sizing Guide
Engineering recommendations for Agco Lawn Tractors AGCO 1716H based on its 16 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 1 to 2 Bottom (12")1 - 2 铧 (30 cm) | Light Duty | Ideal for garden plots and light sandy soil. |
Rotary Cutter / MowerMowing & Clearing | 4 ft (48 in)1.2 m | Light Duty | Pasture clipping and light brush under 1" diameter. |
Rotary TillerSeedbed Prep | 42 to 48 in105 - 120 cm | Light Duty | Covers compact tractor tire width. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Agco Lawn Tractors AGCO 1716H.
Estimated Continuous Field Runtime: 4.8 hrs
Approximately 4.8 hours of continuous field operation at ~75% rated power on a full tank (4 gal / 15.1 L).
Estimated 75% Load Fuel Burn~0.8 gal/hr (3.1 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Agco Lawn Tractors AGCO 1716H Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Agco Lawn Tractors AGCO 1716H.
Converted Equivalents:
Horsepower (HP)16 hp
Kilowatts (kW)11.9 kW
Metric Horsepower (PS / CV)16.2 PS
