Agri-Power 9000
The Agri-Power 9000 is a tractor produced by Agri Power. It is equipped with a 452.3 ci 7.4 L engine. The listed engine power is Diesel (listed): 113 hp / 84.3 kW. Transmission: 9 forward and 2 reverse. Operating weight: 8952 lbs 4060 kg.
Engine Power
Diesel (listed): 113 hp / 84.3 kW
Fuel & Capacities
28.5 gal
107.9 L
Transmission
9 forward and 2 reverse
Operating Weight
8952 lbs
4060 kg
Overview
 | 1982
Utility tractorFiat built
Utility tractor
Fiat built |
|---|
Production | |
|---|---|
Distributor | Agri-Power |
Manufacturer | Fiat |
Utility tractor | |
Built in Sauce Viejo, Argentina | |
Original price was $14,900 in 1982 | |
Variants | |
|---|---|
900E | similar Fiat model |
Agri-Power 9000 Engine | |
|---|---|
Fiat 7.4L 6-cyl diesel | |
Fuel tank | 28.5 gal
107.9 L |
Engine details ...  | |
Agri-Power 9000 Transmission | |
|---|---|
9-speed | |
Transmission details ...  |
Agri-Power 9000 Power | |
|---|---|
Engine | 113 hp
84.3 kW |
Mechanical | |
|---|---|
Two-wheel drive | |
Power steering | |
Mechanical dry disc brakes | |
Open operator station. |
Hydraulics | |
|---|---|
Pressure | 2132 psi
147.0 bar |
Total flow | 7.4 gpm
28.0 lpm |
Tractor hitch | |
|---|---|
Rear Type | II |
Rear lift | 7480 lbs
3392 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540/1000 (1.375) |
Dimensions & Tires | |
|---|---|
Wheelbase | 101 inches
256 cm |
Weight | 8952 lbs
4060 kg |
Front tire | 7.50-16 |
Rear tire | 18.4/15-34 |
Full dimensions and tires ...  | |
References | |
|---|---|
 | |
Economical Diesel Power for the 80's published in 1982, by Agri-Power |
Engine
Engine Detail — 452.3 ci / 7.4 L Diesel
Manufacturer | Fiat CP3/620 |
Fuel Type | Diesel |
Configuration | 6-cylinder, liquid-cooled |
Displacement | 452.3 ci
7.4 L |
Bore/Stroke | 4.33x5.12 inches
110 x 130 mm |
Power | 113 hp
84.3 kW |
Compression | 17.4:1 |
Rated RPM | 2200 |
Starter volts | 24 |
Transmission
Transmission — 9 forward and 2 reverse
Gears | 9 forward and 2 reverse |
With 18.4/15-34 rear tires. | |
 | |
Dimensions
Agri-Power 9000 Tires | |
|---|---|
Ag front | 7.50-16 |
Ag rear | 18.4/15-34 |
Dimensions | |
|---|---|
Wheelbase | 101 inches
256 cm |
Length | 155.5 inches
394 cm |
Height (steering wheel) | 69.2 inches
175 cm |
Height (hood) | 67.3 inches
170 cm |
Weight | 8952 lbs
4060 kg |
Ground clearance | 20 inches
50 cm |
Photos

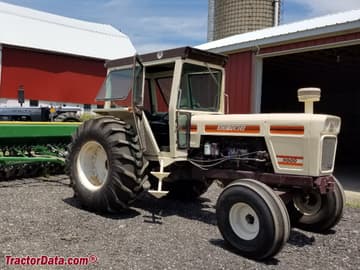

Agri-Power 9000 row-crop tractor.
Agri-Power 9000 with cab.
Open station Agri-Power 9000 tractor.
Agri-Power 9000 operator station and controls.
Recommended Implements & Sizing Guide
Engineering recommendations for Agri Power Agri-Power 9000 based on its 113 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 4 to 5 Bottom (16-18")4 - 5 铧 (40-45 cm) | Heavy Duty | Heavy primary tillage; semi-mounted hitch recommended. |
Rotary Cutter / MowerMowing & Clearing | 10 to 12 ft Flex-Wing3.0 - 3.6 m 折叠双翼 | Heavy Duty | Wide swath pasture and crop residue shredding. |
Rotary TillerSeedbed Prep | 90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机 | Commercial / Field Scale | Deep intensive seedbed preparation for commercial row crops. |
Disc HarrowSecondary Tillage | 10 to 14 ft Tandem / Offset3.0 - 4.2 m 重型交错耙 | Heavy Duty | Aggressive residue cutting in corn/cotton stubble. |
Hay BalerHay & Forage | 5x6 Round Baler or 3x3 Mid Square1.5x1.8 m 大圆捆或中型方捆机 | Heavy Duty | High density baling; requires minimum 85 PTO HP. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Agri Power Agri-Power 9000.
Estimated Continuous Field Runtime: 4.9 hrs
Approximately 4.9 hours of continuous field operation at ~75% rated power on a full tank (28.5 gal / 107.9 L).
Estimated 75% Load Fuel Burn~5.9 gal/hr (22.2 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Agri Power Agri-Power 9000 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Agri Power Agri-Power 9000.
Converted Equivalents:
Horsepower (HP)113 hp
Kilowatts (kW)84.3 kW
Metric Horsepower (PS / CV)114.6 PS
