allis chalmers 170
 | 1967 - 1973
Row-Crop tractor | 1967 - 1973 | Row-Crop tractor |
|---|---|---|---|
1967 - 1973 | |||
Row-Crop tractor | |||
1967 - 1973 | |
|---|---|
Row-Crop tractor |
Tractor Tests | |
|---|---|
NTTL 965: diesel 8-speed 2WD | |
NTTL 966: gasoline 8-speed 2WD |

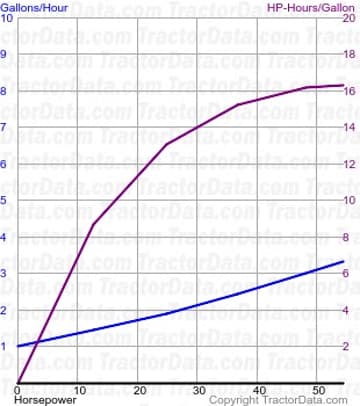

Nebraska Tractor Test 965 | ||
|---|---|---|
 | | |
| ||
|
|---|
Nebraska Tractor Test 965 | |
|---|---|
Diesel 8-speed 2WD
October 13 - 27, 1967
Link: Nebraska Tractor Test 965 file | |
PTO performance | |
Power at rated engine speed | 54.04 hp
40.3 kW |
Fuel use | 3.3 gal/hour
12.5 l/hour |
Power at rated PTO speed | 50.59 hp
37.7 kW |
Fuel use | 3.1 gal/hour
11.7 l/hour |
Drawbar performance | |
Max power | 47.39 hp
35.3 kW |
Fuel use | 3.4 gal/hour
12.9 l/hour |
Gear 5 used for power test. | |
Max pull | 6881 lbs
3121 kg |
Gear 1 used for pull test. | |

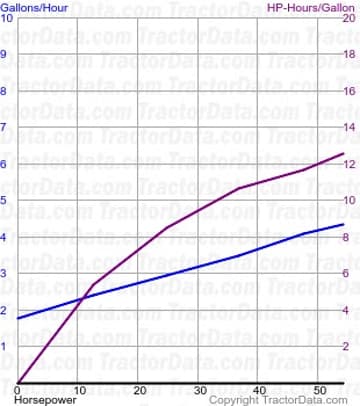

Nebraska Tractor Test 966 | ||
|---|---|---|
 | | |
| ||
|
|---|
Nebraska Tractor Test 966 | |
|---|---|
Gasoline 8-speed 2WD
October 16 - 27, 1967
Link: Nebraska Tractor Test 966 file | |
PTO performance | |
Power at rated engine speed | 54.12 hp
40.4 kW |
Fuel use | 4.3 gal/hour
16.3 l/hour |
Power at rated PTO speed | 51.46 hp
38.4 kW |
Fuel use | 4.0 gal/hour
15.1 l/hour |
Drawbar performance | |
Max power | 46.93 hp
35.0 kW |
Fuel use | 4.4 gal/hour
16.7 l/hour |
Gear 5 used for power test. | |
Max pull | 6851 lbs
3107 kg |
Gear 1 used for pull test. | |
