allis chalmers 175
 | 1970 - 1980
Row-Crop tractor | 1970 - 1980 | Row-Crop tractor |
|---|---|---|---|
1970 - 1980 | |||
Row-Crop tractor | |||
1970 - 1980 | |
|---|---|
Row-Crop tractor |
Tractor Tests | |
|---|---|
NTTL 1043: 236 diesel 8-speed 2WD | |
NTTL 1156: gasoline 8-speed 2WD |

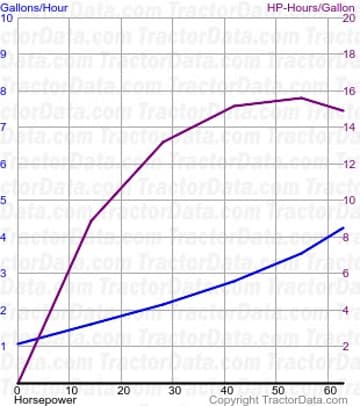

Nebraska Tractor Test 1043 | ||
|---|---|---|
 | | |
| ||
|
|---|
Nebraska Tractor Test 1043 | |
|---|---|
236 diesel 8-speed 2WD
May 26 - June 3, 1970
Link: Nebraska Tractor Test 1043 file | |
PTO performance | |
Power at rated engine speed | 62.47 hp
46.6 kW |
Fuel use | 4.2 gal/hour
15.9 l/hour |
Power at rated PTO speed | 54.62 hp
40.7 kW |
Fuel use | 3.6 gal/hour
13.6 l/hour |
Drawbar performance | |
Max power | 54.05 hp
40.3 kW |
Fuel use | 4.2 gal/hour
15.9 l/hour |
Gear 2H used for power test. | |
Max pull | 6,407 lbs
2906 kg |
Gear 1H used for pull test. | |

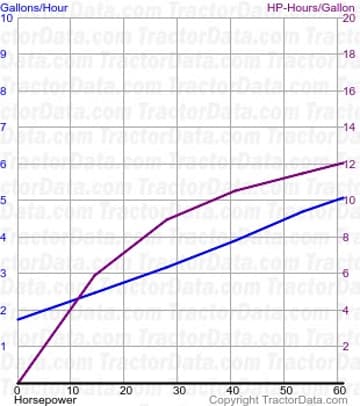

Nebraska Tractor Test 1156 | ||
|---|---|---|
 | | |
| ||
|
|---|
Nebraska Tractor Test 1156 | |
|---|---|
Gasoline 8-speed 2WD
April 1 - 11, 1974
Link: Nebraska Tractor Test 1156 file | |
PTO performance | |
Power at rated engine speed | 60.88 hp
45.4 kW |
Fuel use | 5.1 gal/hour
19.3 l/hour |
Power at rated PTO speed | 56.02 hp
41.8 kW |
Fuel use | 4.8 gal/hour
18.2 l/hour |
Drawbar performance | |
Max power | 51.80 hp
38.6 kW |
Fuel use | 5.1 gal/hour
19.3 l/hour |
Gear 2H used for power test. | |
Max pull | 6,875 lbs
3118 kg |
Gear 1H used for pull test. | |
