Allis Chalmers 180

The Allis Chalmers 180 is a tractor produced by Allis Chalmers. It is equipped with a 265 ci 4.3 L engine. The listed engine power is 65.16 hp 48.6 kW. Transmission: Power Director. Operating weight: 6420 to 6510 pounds.

Engine Power

65.16 hp 48.6 kW

Fuel & Capacities

24.6 gal (diesel) 93.1 L

Transmission

Power Director

Operating Weight

6420 to 6510 pounds

Overview

	1967 - 1973 Row-Crop tractor

Production
Manufacturer	Allis Chalmers
Row-Crop tractor
Built in West Allis, Wisconsin, USA
Total built	11,750 (total)
	10,163 (diesel)
	1,587 (gas)
Original price	$7,474

Allis Chalmers 180 Transmission
8-speed partial powershift
Transmission details ...

Allis Chalmers 180 Power
Drawbar (claimed)	55.2 hp 41.2 kW
PTO (claimed)	64.01 hp 47.7 kW
Drawbar (tested)	56.05 hp 41.8 kW
PTO (tested)	65.16 hp 48.6 kW
Performance test details ...

Mechanical
Two-wheel drive
Steering	hydraulic power
Differential disc brake band acutated brakes
Open operator station.

Capacity
Fuel	24.6 gal (diesel) 93.1 L
Hydraulic system	9 gal 34.1 L

Hydraulics
Type	open center
Capacity	9 gal 34.1 L
Valves	2
Pump flow	10 gpm 37.9 lpm
Steering flow	5.8 gpm 22.0 lpm
Steering press.	2000 psi 137.9 bar

Tractor hitch
Rear Type	II

Power Take-off (PTO)
Rear PTO	transmission
	independent OptOptional
Rear PTO Type	540 (1.375)
	540/1000 OptOptional
Engine RPM	540@1964

Dimensions & Tires
Wheelbase	99.158 inches 251 cm
Weight	6420 to 6510 pounds
Front tire	6.50-16
Rear tire	14.9/13-28
Full dimensions and tires ...

Belt Pulley
Diameter	9 inches 22 cm
Width	6.562 inches 16 cm
RPM	1677
Speed	3950 ft/min 1203.96 meters/min

Electrical
Ground	negative
Charging system	Delco-Remy alternator
Charging amps	32
Batteries	1
	2 OptOptional
Battery volts	12
Battery AH	95

References

Loaders - picking up where the others leave off published in 1979, by Allis Chalmers
One-Eighty Tractor published in 1969, by Allis Chalmers
One-Eighty Landhandler Tractor published in 1971, by Allis Chalmers
Operators Instructions One-Eighty Tractor (TM-458)

Engine

Engine options
Allis Chalmers 4.9L 6-cyl diesel
Allis-Chalmers 4.3L 6-cyl gasoline

Engine Detail — 301 ci / 4.9 L Diesel

Manufacturer	Allis Chalmers 2800
Fuel Type	Diesel
Configuration	6-cylinder, liquid-cooled
Displacement	301 ci 4.9 L
Bore/Stroke	3.875x4.25 inches 98 x 108 mm
Compression	16.25:1
Rated RPM	2000
Firing order	1-5-3-6-2-4
Starter volts	12
Coolant capacity	17 qts 16.1 L
Intake valve clearance	0.015 inches*Hot 0.381 mm
Exhaust valve clearance	0.015 inches*Hot 0.381 mm
Oil capacity	10 qts 9.5 L

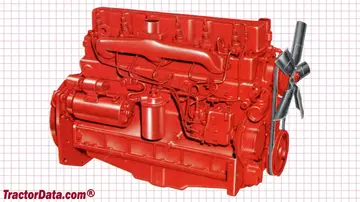

Allis Chalmers 180 Engine

Engine Detail — 265 ci / 4.3 L Gasoline

Manufacturer	Allis-Chalmers
Fuel Type	Gasoline
Configuration	6-cylinder, liquid-cooled
Displacement	265 ci 4.3 L
Bore/Stroke	3.75x4.00 inches 95 x 102 mm
Compression	8.15:1
Rated RPM	2000
Firing order	1-5-3-6-2-4
Oil capacity	12 qts 11.4 L

Allis Chalmers 180 Engine

Transmission

Transmission — Power Director

Transmission	Power Director
Type	partial powershift
Gears	8 forward and 2 reverse
Oil capacity	24 qts 22.7 L
The transmission is controlled by means of the gear shift lever and the Power Director lever. The tractor must be stopped, and clutch used, to select one of four forward gears, or reverse. The Power Director lever has high, low, and neutral positions. The Power Director can be shifted on the move without clutching. Placing the Power Director into neutral causes the tractor to stop while keeping the PTO engaged.
With 16.9-28 rear tires.

Dimensions

Allis Chalmers 180 Tires
Ag front	6.50-16
	7.50-16
	9.00-10
Ag rear	14.9/13-28
	16.9/14-28
	18.4/15-28
	23.1/18-26
	15.5-3818.4-28

Dimensions
Wheelbase	99.158 inches 251 cm
Length	158 inches 401 cm
Width	76.5 inches 194 cm
Clearance (front axle)	20.8 inches 52 cm
Clearance (rear axle)	31.6 inches 80 cm

Allis Chalmers 180 Weight
Gas Operating	6420 lbs 2912 kg
Diesel Operating	6510 lbs 2952 kg
Ballasted	10270 lbs 4658 kg

Allis Chalmers 180 Height
	35.35 inches (platform) 89 cm
Steering wheel	83.3 inches 211 cm
Hood	64.4 inches 163 cm
Exhaust	90.4 inches 229 cm

Tests

Tractor Tests
NTTL 964: diesel 8-speed 2WD
NTTL 1005: gasoline 8-speed 2WD

Nebraska Tractor Test 964
Diesel 8-speed 2WD 10/13/1967 Link: Nebraska Tractor Test 964 file
PTO performance
Power at rated engine speed	64.01 hp 47.7 kW
Fuel use	4.2 gal/hour 15.9 l/hour
Power at rated PTO speed	63.90 hp 47.7 kW
Fuel use	4.2 gal/hour 15.9 l/hour
Drawbar performance
Max power	55.28 hp 41.2 kW
Fuel use	4.2 gal/hour 15.9 l/hour
Gear 4 used for power test.

Nebraska Tractor Test 1005
Gasoline 8-speed 2WD April 8 - 14, 1969 Link: Nebraska Tractor Test 1005 file
PTO performance
Power at rated engine speed	65.16 hp 48.6 kW
Fuel use	5.9 gal/hour 22.3 l/hour
Power at rated PTO speed	64.62 hp 48.2 kW
Fuel use	5.8 gal/hour 22.0 l/hour
Drawbar performance
Max power	56.05 hp 41.8 kW
Fuel use	5.8 gal/hour 22.0 l/hour
Gear 4 used for power test.

Photos

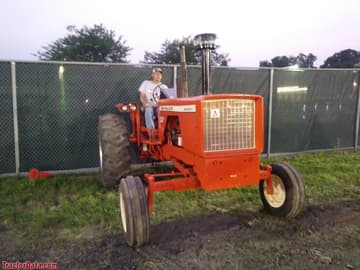

Wide-front Allis-Chalmers 180.

Tricycle-frotn Allis-Chalmers 180, right side.

Recommended Implements & Sizing Guide

Engineering recommendations for Allis Chalmers 180 based on its 65.16 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	3 to 4 Bottom (16")3 - 4 铧 (40 cm)	Heavy Duty	Suitable for medium loam and stubble turnover.
Rotary Cutter / MowerMowing & Clearing	7 to 8 ft (84-96 in)2.1 - 2.4 m	Heavy Duty	Heavy-duty twin spindle cutter for overgrown acreage.
Rotary TillerSeedbed Prep	78 to 84 in200 - 215 cm	Heavy Duty	Heavy commercial tiller with multi-speed gearbox.
Disc HarrowSecondary Tillage	7 to 8 ft Tandem Disc2.1 - 2.4 m 对开双排耙	Medium Duty	Field leveling and clod breaking behind plows.
Hay BalerHay & Forage	4x4 to 4x5 Round Baler1.2x1.5 m 紧凑圆捆机	Heavy Duty	Silage and dry hay; 540 RPM PTO with slip-clutch.

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Allis Chalmers 180.

Estimated Continuous Field Runtime: 7.3 hrs

Approximately 7.3 hours of continuous field operation at ~75% rated power on a full tank (24.6 gal / 93.1 L).

Estimated 75% Load Fuel Burn~3.4 gal/hr (12.8 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours
