allis chalmers 5050
 | 1977 - 1983
5000 SeriesUtility tractorFiat built | 1977 - 1983 | 5000 Series | Utility tractor | Fiat built |
|---|---|---|---|---|---|
1977 - 1983 | |||||
5000 Series | |||||
Utility tractor | |||||
Fiat built | |||||
1977 - 1983 | |
|---|---|
5000 Series | |
Utility tractor | |
Fiat built |
Engine Detail | |
|---|---|
Fiat | |
diesel | |
3-cylinder | |
liquid-cooled | |
Displacement | 167.8 ci
2.8 L |
Bore/Stroke | 4.055x4.330 inches
103 x 110 mm |
Fuel use | 3.504 gal/hour
13.3 l/hour |
Air cleaner | paper element |
Compression | 17.1:1 |
Rated RPM | 2700 |
Starter volts | 12 |
Oil capacity | 8.1 qts
7.7 L |
Coolant capacity | 14.25 qts
13.5 L |
Intake valve clearance | 0.018 inches (cold)
0.457 mm |
| 0.014 inches (hot)
0.356 mm |
Exhaust valve clearance | 0.018 inches (cold)
0.457 mm |
| 0.014 inches (hot)
0.356 mm |

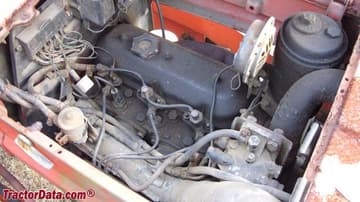

Allis Chalmers 5050 Engine | |
|---|---|
 | |
Image courtesy of Maxx |
