Allis Chalmers 7000

The Allis Chalmers 7000 is a tractor produced by Allis Chalmers. It is equipped with a 301 ci 4.9 L engine. The listed engine power is 106.44 hp 79.4 kW. Transmission: Power Director. Operating weight: 9350 to 9550 pounds.

Engine Power

106.44 hp 79.4 kW

Fuel & Capacities

37 gal 140.0 L

Transmission

Power Director

Operating Weight

9350 to 9550 pounds

Overview

	1975 - 1979 7000 SeriesRow-Crop tractor 7000 Series Row-Crop tractor

Production
Manufacturer	Allis Chalmers
Row-Crop tractor
Built in West Allis, Wisconsin, USA
Total built	7,264
Original price	$24,860
The Allis model 7000 had two versions, the early maroon (or brown) chassis and the later black chassis. The switch occured in 1978, with serial number 8000 as the first black chassis tractor. The black-chassis featured a new transmission design and new cab.

Allis Chalmers 7000 Engine
Allis Chalmers 4.9L 6-cyl diesel
Engine details ...

Allis Chalmers 7000 Transmission
12-speed partial power shift
Transmission details ...

Allis Chalmers 7000 Power
Drawbar (claimed)	89 hp 66.4 kW
PTO (claimed)	106 hp 79.0 kW
Drawbar (tested)	89.46 hp 66.7 kW
PTO (tested)	106.44 hp 79.4 kW
Performance test details ...

Mechanical
Two-wheel drive
Power steering
Differential dry disc brakes
Acousta-Cab optional. Acousta-Cab II on black chassis models.

Capacity
Fuel	37 gal 140.0 L
Hydraulic system	7 gal 26.5 L
Rear diff.	32 qts 30.3 L

Hydraulics
Type	open center
Capacity	7 gal 26.5 L
Valves	1
Pump flow	21 gpm 79.5 lpm
Total flow	25 gpm 94.6 lpm

Tractor hitch
Rear Type	II

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	1000
	540/1000
Engine RPM	540@2200
	1000@2200

Dimensions & Tires
Wheelbase	106 inches 269 cm
Weight	9350 to 9550 pounds
Front tire	10.00-16
Rear tire	18.4x38
Full dimensions and tires ...

Electrical
Ground	negative
Batteries	1
	2 OptOptional
Battery volts	12
Battery AH	95

References

Loaders - picking up where the others leave off published in 1979, by Allis Chalmers
7000 - Looks, act, sounds like its bigger brothers. published in 1975, by Allis Chalmers
7000 - Turbocharged Workhorse That Keeps Its Cool published in 1978, by Allis Chalmers
Operator's Manual 7000 (260623) published in 1975

Engine

Engine Detail — 301 ci / 4.9 L Diesel

Manufacturer	Allis Chalmers 2900
Configuration	turbocharged diesel, 6-cylinder, liquid-cooled
The 2900 engine was used on the maroon-chassis Allis 7000, until serial number 8000 in 1978.
Displacement	301 ci 4.9 L
Bore/Stroke	3.875x4.25 inches 98 x 108 mm
Air cleaner	dry
Compression	16.25:1
Rated RPM	2200
Idle RPM	775-2465
Firing order	1-5-3-6-2-4
Starter volts	12
Coolant capacity	22.5 qts 21.3 L
Coolant change	2000 h
Intake valve clearance	0.015 inches (hot) 0.381 mm
Exhaust valve clearance	0.015 inches (hot) 0.381 mm
Oil capacity	16 qts 15.1 L
Oil change	100 h

Engine Detail — 301 ci / 4.9 L Diesel

Manufacturer	Allis Chalmers 649T
Configuration	turbocharged diesel, 6-cylinder, liquid-cooled
The black-chassis model 7000 engine was designed the 649T, with several internal changes over the 2900 including new Bosch injectors and oil cooling jets. Rated power did not change.
Displacement	301 ci 4.9 L
Bore/Stroke	3.875x4.25 inches 98 x 108 mm
Compression	16.25:1
Rated RPM	2200
Firing order	1-5-3-6-2-4
Starter volts	12
Coolant capacity	22.5 qts 21.3 L

Transmission

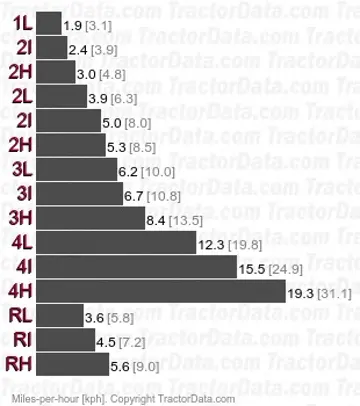

Transmission — Power Director

Transmission	Power Director
Type	partial power shift
Gears	12 forward and 3 reverse
Clutch	12-inch dry disc (main)
	7-inch wet discs (power shift)
Oil capacity	26 qts 24.6 L
Four forward gears and one reverse combined with three-range power shift between low, direct, and overdrve. Used on the maroon-chassis model 7000. Power shift was similar to the Allis Power-Director system, with a third clutch added to provide an overdrive.

Transmission — 12 forward and 3 reverse partial power shift

Type	partial power shift
Gears	12 forward and 3 reverse
Four forward gears and one reverse combined with three-range power shift between low, direct, and overdrve. The black-chassis Allis 7000 used a new hydraulic wet clutch and torque limiter. A combination clutch/inching pedal put the transmission into low range when depressed.

Dimensions

Allis Chalmers 7000 Tires
Ag front	10.00-16
Ag rear	18.4x38
Ag front	7.5-15
	9.5L-15
	11L-15
Ag rear	12.4-42
	15.5-38
	16.9-34
	16.9-38
	18.4-34
	23.1-30
	20.8-34
	18.4-38
	23.1-26

Dimensions
Wheelbase	106 inches 269 cm
Length	183 inches 464 cm
Clearance (front axle)	24 inches 60 cm
Clearance (rear axle)	29 inches 73 cm
Rear axle	3.25 by 88.5 inches 82 by 2247 mm
Rear axle	3.25 by 116 inches 82 by 2946 mm (long axle)
Front tread	62 to 86 inches 157 to 218 cm
Rear tread	64 to 85 inches 162 to 215 cm
Rear tread	64 to 112 inches 162 to 284 cm (long axle)

Allis Chalmers 7000 Weight
Shipping	9350 lbs 4241 kg
Operating	9550 lbs 4331 kg
Ballasted	12580 lbs 5706 kg

Allis Chalmers 7000 Height
Steering wheel	88 inches 223 cm
Hood	69 inches 175 cm
Exhaust	113 inches 287 cm

Tests

Nebraska Tractor Test 1195
Diesel 12-speed 2WD November 8 - 20, 1975 Link: Nebraska Tractor Test 1195 file
PTO performance
Power at rated engine speed	106.44 hp 79.4 kW
Fuel use	6.8 gal/hour 25.7 l/hour
Power at rated PTO speed	105.85 hp 78.9 kW
Fuel use	6.7 gal/hour 25.4 l/hour
Drawbar performance
Max power	89.46 hp 66.7 kW
Fuel use	6.8 gal/hour 25.7 l/hour
Gear 3-I used for power test.
Max pull	9,907 lbs 4493 kg
Gear 2-L used for pull test.

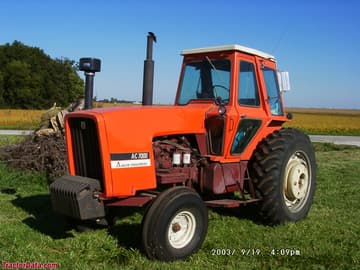

Photos

Allis Chalmers 7000

Recommended Implements & Sizing Guide

Engineering recommendations for Allis Chalmers 7000 based on its 106.44 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	4 to 5 Bottom (16-18")4 - 5 铧 (40-45 cm)	Heavy Duty	Heavy primary tillage; semi-mounted hitch recommended.
Rotary Cutter / MowerMowing & Clearing	10 to 12 ft Flex-Wing3.0 - 3.6 m 折叠双翼	Heavy Duty	Wide swath pasture and crop residue shredding.
Rotary TillerSeedbed Prep	90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机	Commercial / Field Scale	Deep intensive seedbed preparation for commercial row crops.
Disc HarrowSecondary Tillage	10 to 14 ft Tandem / Offset3.0 - 4.2 m 重型交错耙	Heavy Duty	Aggressive residue cutting in corn/cotton stubble.
Hay BalerHay & Forage	5x6 Round Baler or 3x3 Mid Square1.5x1.8 m 大圆捆或中型方捆机	Heavy Duty	High density baling; requires minimum 85 PTO HP.

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Allis Chalmers 7000.

Estimated Continuous Field Runtime: 6.7 hrs

Approximately 6.7 hours of continuous field operation at ~75% rated power on a full tank (37 gal / 140.1 L).

Estimated 75% Load Fuel Burn~5.5 gal/hr (21 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours
