allis chalmers 7020
 | 1978 - 1981
7000 SeriesRow-Crop tractor | 1978 - 1981 | 7000 Series | Row-Crop tractor |
|---|---|---|---|---|
1978 - 1981 | ||||
7000 Series | ||||
Row-Crop tractor | ||||
1978 - 1981 | |
|---|---|
7000 Series | |
Row-Crop tractor |
Tractor Tests | |
|---|---|
NTTL 1259: diesel Power shift 2WD | |
NTTL 1260: diesel Power Director 2WD |

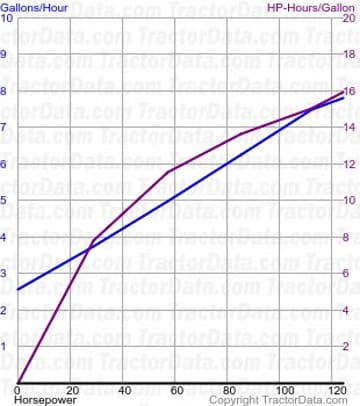

Nebraska Tractor Test 1259 | ||
|---|---|---|
 | | |
| ||
|
|---|
Nebraska Tractor Test 1259 | |
|---|---|
Diesel Power shift 2WD
October 10 - 21, 1977
Link: Nebraska Tractor Test 1259 file | |
PTO performance | |
Power at rated engine speed | 123.79 hp
92.3 kW |
Fuel use | 7.8 gal/hour
29.5 l/hour |
Power at rated PTO speed | 123.50 hp
92.1 kW |
Fuel use | 7.7 gal/hour
29.1 l/hour |
Drawbar performance | |
Max power | 101.89 hp
76.0 kW |
Fuel use | 7.8 gal/hour
29.5 l/hour |
Gear 1F used for power test. | |
Max pull | 12,001 lbs
5443 kg |
Gear 2S used for pull test. | |

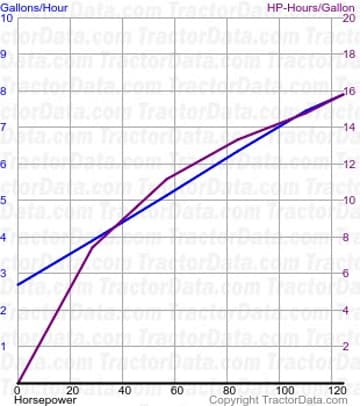

Nebraska Tractor Test 1260 | ||
|---|---|---|
 | | |
| ||
|
|---|
Nebraska Tractor Test 1260 | |
|---|---|
Diesel Power Director 2WD
October 10 - 21, 1977
Link: Nebraska Tractor Test 1260 file | |
PTO performance | |
Power at rated engine speed | 123.85 hp
92.4 kW |
Fuel use | 7.8 gal/hour
29.5 l/hour |
Power at rated PTO speed | 125.51 hp
93.6 kW |
Fuel use | 7.8 gal/hour
29.5 l/hour |
Drawbar performance | |
Max power | 102.09 hp
76.1 kW |
Fuel use | 7.8 gal/hour
29.5 l/hour |
Gear 4SL used for power test. | |
Max pull | 11,964 lbs
5426 kg |
Gear 2SL used for pull test. | |
