allis chalmers 8070
 | 1982 - 1985
Row-Crop tractor | 1982 - 1985 | Row-Crop tractor |
|---|---|---|---|
1982 - 1985 | |||
Row-Crop tractor | |||
1982 - 1985 | |
|---|---|
Row-Crop tractor |
Transmission options | |
|---|---|
20-speed partial power shift | |
12-speed Allis-Chalmers |
Transmission | |
|---|---|
Transmission | Allis-Chalmers Power Director |
Type | partial power shift |
Gears | 20 forward and 4 reverse |
Oil capacity | 29.6 qts
28.0 L |
Five gears (1-5) in two ranges (slow/fast) with a two-speed power shift (low/high) controlled by left-hand lever. | |

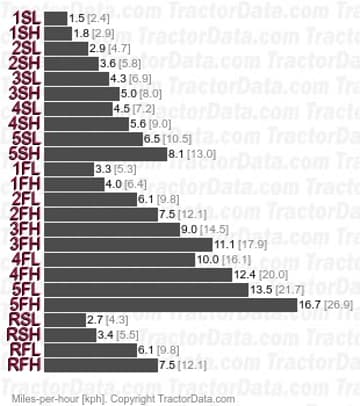

Speeds | |
|---|---|
With 18.4x38 rear tires. | |
 |

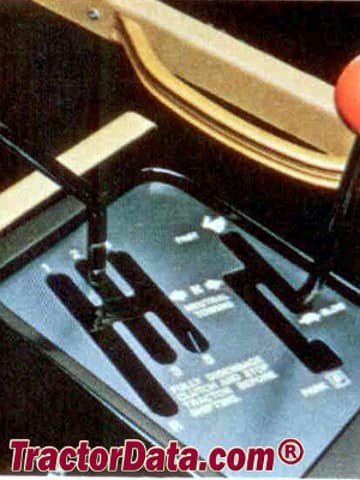

Shift Pattern | |
|---|---|
 |
Transmission | |
|---|---|
Transmission | Power Shift |
Type | Allis-Chalmers |
Gears | 12 forward and 2 reverse |
Oil capacity | 29.6 qts
28.0 L |
Six power shift gears (1-6) in two ranges (slow/fast). Clutch must be used to shift range. Pressing the clutch pedal half-way automatically downshifts from 5th/6th to 4th gear. | |

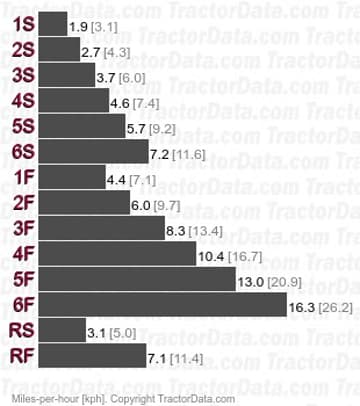

Speeds | |
|---|---|
With 18.4x38 rear tires. | |
 |

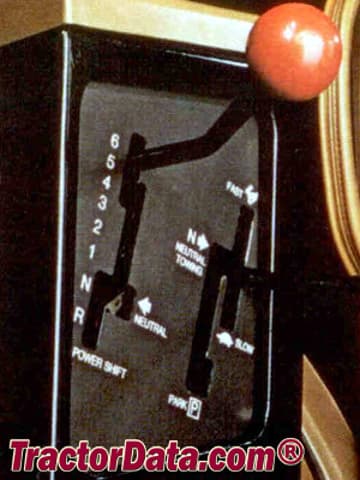

Shift Pattern | |
|---|---|
 |
