Allis Chalmers 314

The Allis Chalmers 314 is a tractor produced by Allis Chalmers Lawn Tractors. It is equipped with a 512 cc 31.27 ci engine. The listed engine power is Gasoline (listed): 14 hp / 10.4 kW. Transmission: Vari-Shift. Operating weight: 804 to 845 pounds.

Overview

	1971 - 1973 300 SeriesGarden tractor 300 Series Garden tractor

Production
Manufacturer	Allis Chalmers
Garden tractor
Built in Lexington, South Carolina, USA
The Allis-Chalmers 314 can be referenced in the Simplicity catalog by codes 1600049, 1600050 (electric pto/lift), and 1600051 (hydrostatic).

Variants
314	manual lift/PTO
314D	electric lift/PTO
314H	hydrostatic

Allis Chalmers 314 Engine
14HP Kohler 512cc 1-cyl gasoline
Fuel tank	2.25 gal 8.5 L
Engine details ...

Mechanical
Two-wheel drive
Steering	manual
Open operator station. Optional seat with arm-rests.

Power Take-off (PTO)
Front PTO	independent
Clutch	manual
	electric (optional)
Front PTO Type	3600

Dimensions & Tires
Wheelbase	48.1 inches 122 cm
Weight	804 to 845 pounds
Front tire	16-6.50x8
Rear tire	23-10.50x12
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	15
Battery volts	12

References
Operator's Manual 300 Series Tractor (TP-1503) published in 1972

Engine

Engine Detail — 512 cc / 31.27 ci Gasoline

Manufacturer	Kohler
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled
Displacement	512 cc 31.27 ci
Bore/Stroke	3.50x3.25 inches 89 x 83 mm
Power	14 hp 10.4 kW
Rated RPM	3600
Starter volts	12
Oil capacity	2 qts 1.9 L
Oil change	25 h

Transmission

Transmission options
21-speed
hydrostatic

Transmission — Vari-Shift

Transmission	Vari-Shift
Gears	21 forward and 7 reverse

Transmission — infinite forward and reverse hydrostatic

Type	hydrostatic
Gears	infinite forward and reverse

Dimensions

Allis Chalmers 314 Tires
Lawn/turf front	16-6.50x8
Lawn/turf rear	23-10.50x12

Dimensions
Wheelbase	48.1 inches 122 cm
Length	74 inches 187 cm
Width	38.5 inches 97 cm
Height (steering wheel)	43 inches 109 cm
Gear Weight	804 lbs 364 kg
Hydro Weight	845 lbs 383 kg
Clearance (front axle)	8 inches 20 cm
Clearance (rear axle)	6 inches 15 cm
Clearance (drawbar)	7.5 inches 19 cm
Front tread	28 inches 71 cm
Rear tread	30.7 inches 77 cm

Attachments

Attachment overview
42" mid-mount mower deck
48" mid-mount mower deck
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

Photos

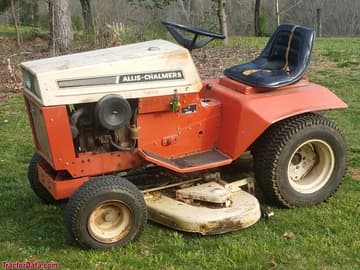

Allis Chalmers 314D.

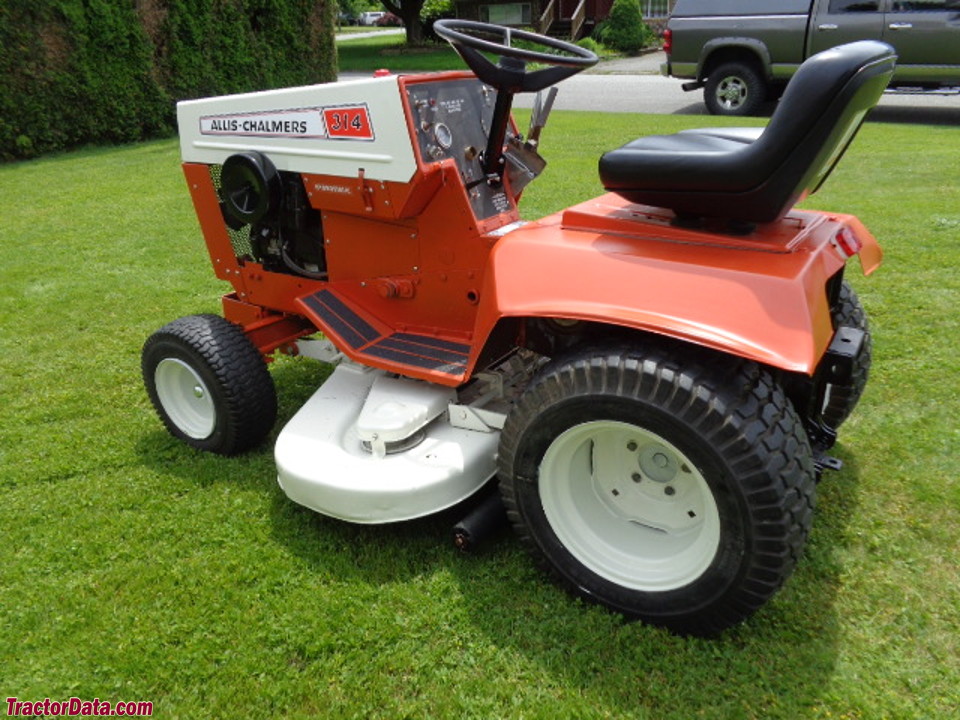

Allis Chalmers 314H.

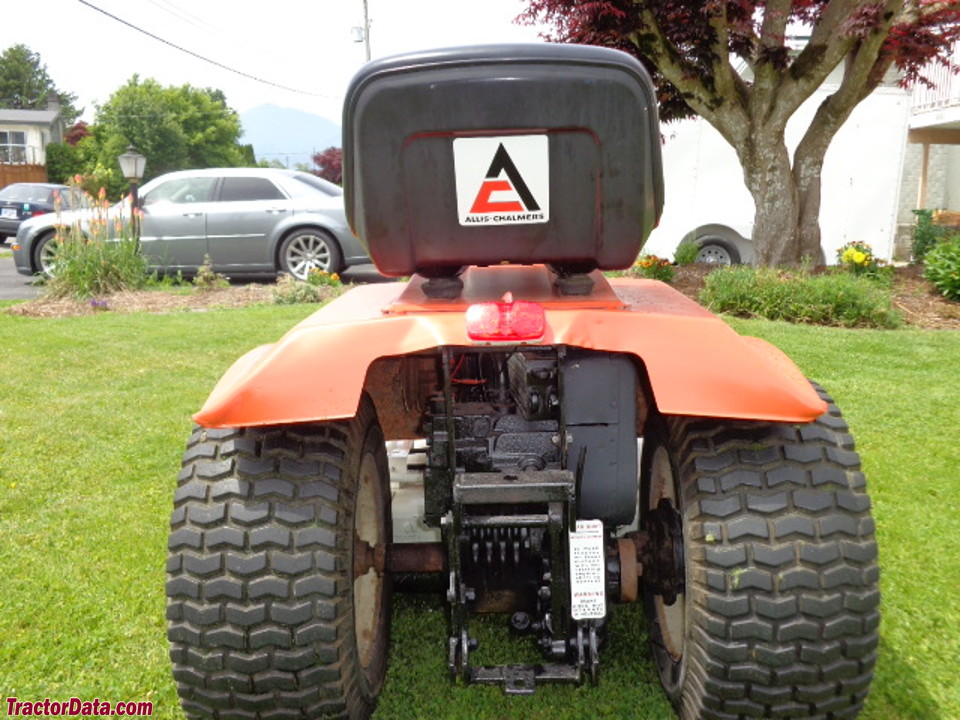

Allis Chalmers 314H.

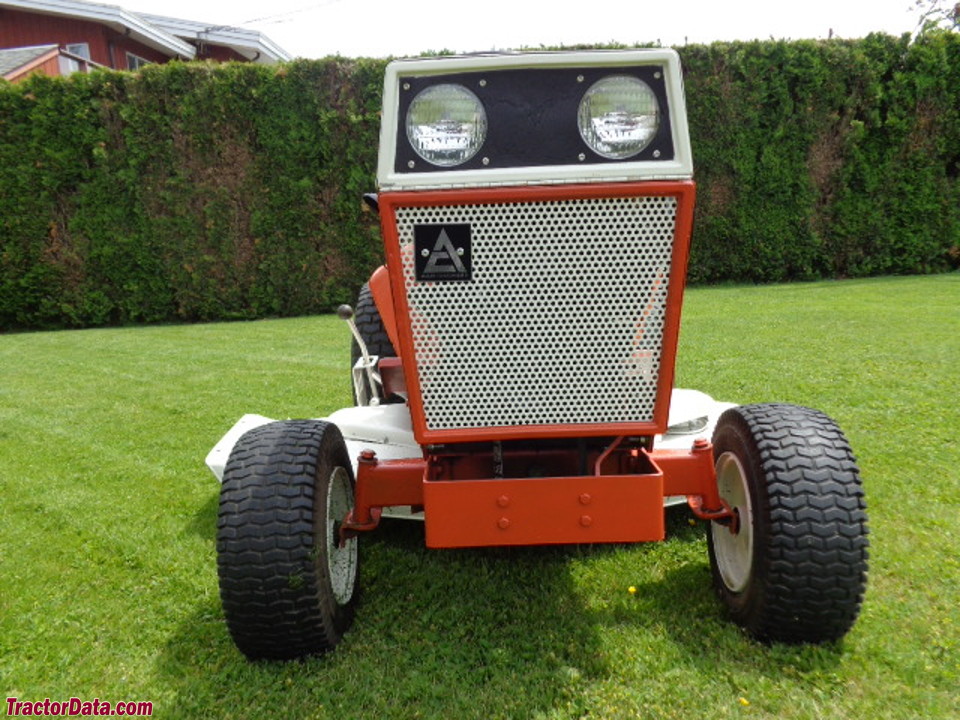

Allis Chalmers 314H.

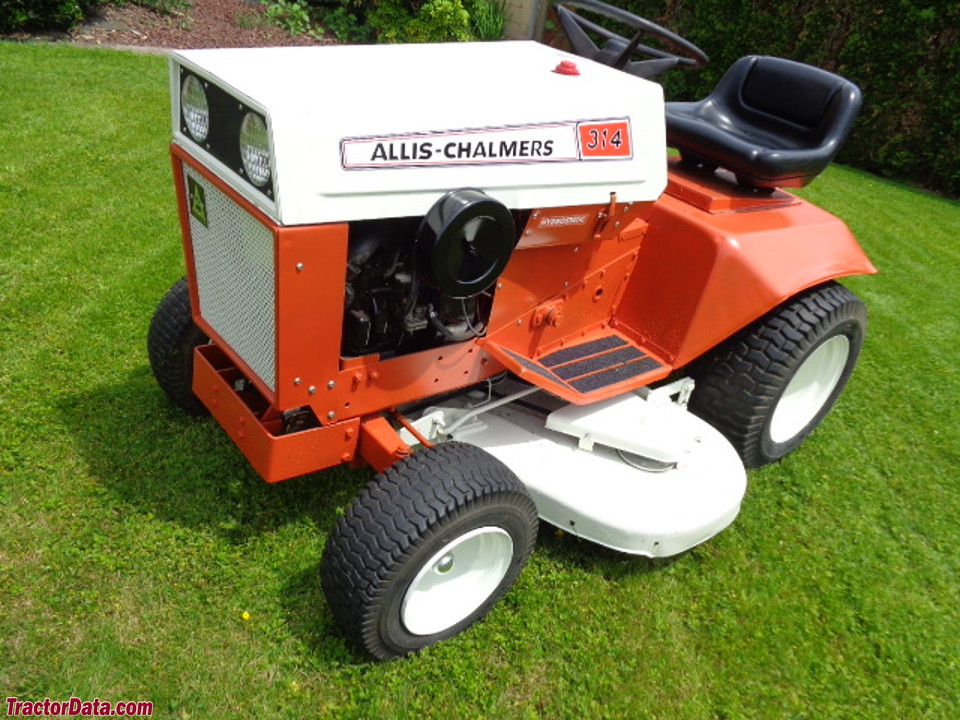

Allis Chalmers 314H.
