Allis Chalmers 712

The Allis Chalmers 712 is a tractor produced by Allis Chalmers Lawn Tractors. It is equipped with a 476 cc 29.1 ci engine. The listed engine power is Gasoline (listed): 12 hp / 8.9 kW. Transmission: infinite forward and reverse. Operating weight: 785 to 805 pounds.

Overview

	1974 - 1979 700 SeriesGarden tractor 700 Series Garden tractor

Production
Manufacturer	Allis Chalmers
Garden tractor
Built in Port Washington, Wisconsin, USA
Original price	$2,400 (1979 shuttle )
	$2,650 (1979 hydrostatic )

Variants
712S	shuttle-shift
712H	hydrostatic

Allis Chalmers 712 Engine
12HP Kohler 476cc 1-cyl gasoline
Fuel tank	3 gal 11.4 L
Engine details ...

Mechanical
Two-wheel drive
Manual steering
Drum brakes
Open operator station.

Tractor hitch
Type	sleeve hitch OptOptional

Power Take-off (PTO)
Mid PTO	independent
Clutch	manual

Dimensions & Tires
Wheelbase	48.1 inches 122 cm
Weight	785 to 805 pounds
Front tire	16x6.50-8
Rear tire	23x8.50-12
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	flywheel alternator
Charging amps	15
Battery volts	12
Battery AH	45

References
Operator's Manual Models 700 Series (1652386) published in 1974
Operator's Manual Models 700 Series (1664443) published in 1978
1974 Buyer's Guide published by Allis-Chalmers
Allis-Chalmers Lawn and Garden Equipment published in 1975
The Beautiful difference in Lawn and Garden Tractors published in 1976, by Allis-Chalmers
Lawn and Garden Tractors published in 1979, by Allis-Chalmers

Engine

Engine Detail — 476 cc / 29.1 ci Gasoline

Manufacturer	Kohler K301
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled horizontal-shaft
Displacement	476 cc 29.1 ci
Bore/Stroke	3.38x3.25 inches 86 x 83 mm
Power	12 hp 8.9 kW
Air cleaner	dry
Rated RPM	3600
Starter	electric
Starter volts	12
Oil capacity	2 qts 1.9 L
Oil change	25 h

Transmission

Transmission options
4-speed shuttle
hydrostatic

Transmission — 4 forward and reverse shuttle

Type	shuttle
Gears	4 forward and reverse

Transmission — infinite forward and reverse belt-driven hydrostatic

Type	belt-driven hydrostatic
Gears	infinite forward and reverse
Oil capacity	3 qts 2.8 L
Oil change	annually

Dimensions

Allis Chalmers 712 Tires
Lawn/turf front	16x6.50-8
Lawn/turf rear	23x8.50-12
	23x10.50-12

Dimensions
Wheelbase	48.1 inches 122 cm
Length	67 inches 170 cm
Width	37.5 inches 95 cm
Height	39.3 inches 99 cm
Shuttle Weight	785 lbs 356 kg
Hydro Weight	805 lbs 365 kg
Ground clearance	8 inches 20 cm
Front tread	30 inches 76 cm
Rear tread	27 inches 68 cm

Attachments

Attachment overview
42" mid-mount mower deck
48" mid-mount mower deck
Snowblower
Blade
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

Photos

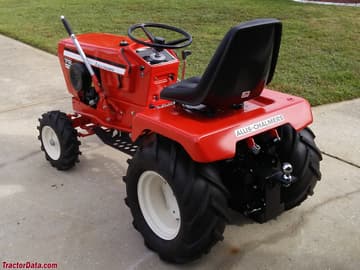

Allis Chalmers 712

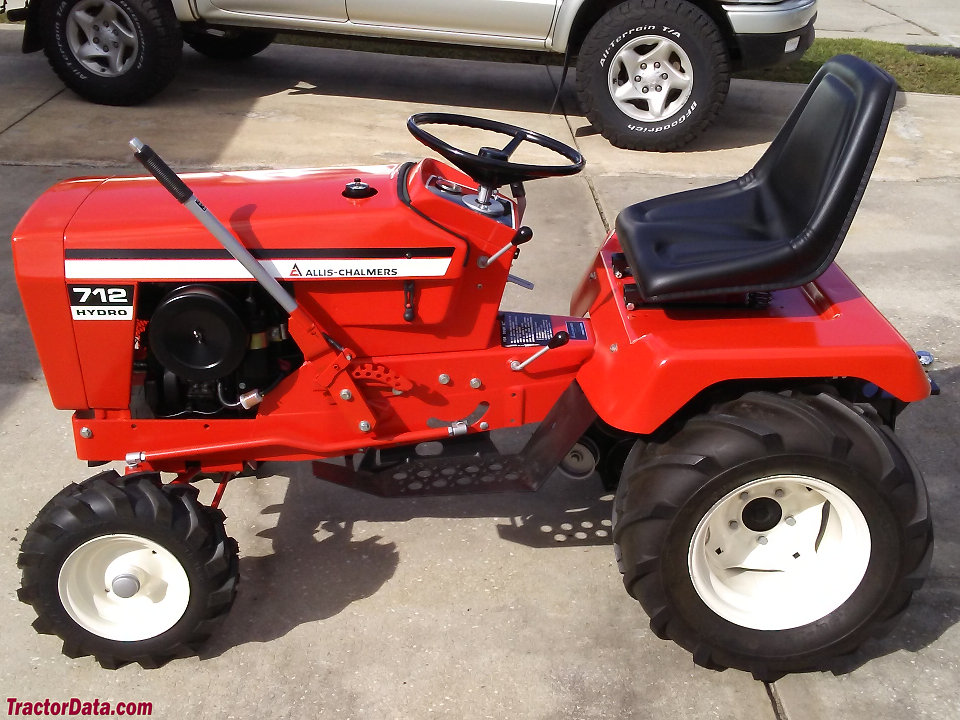

Allis Chalmers 712

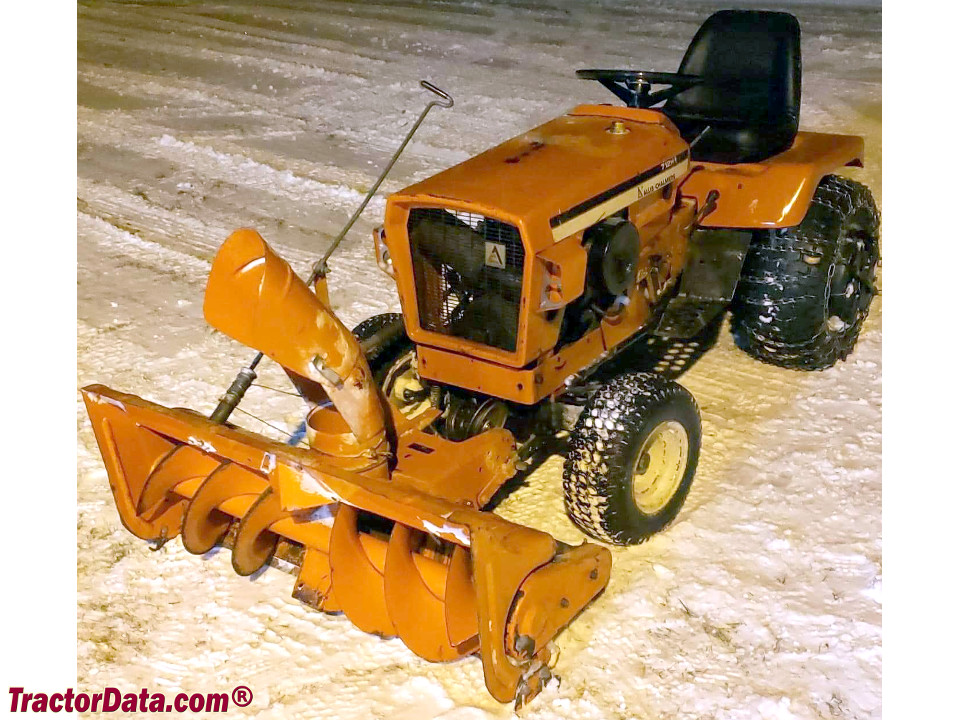

Allis-Chalmers 712H with snow blower.

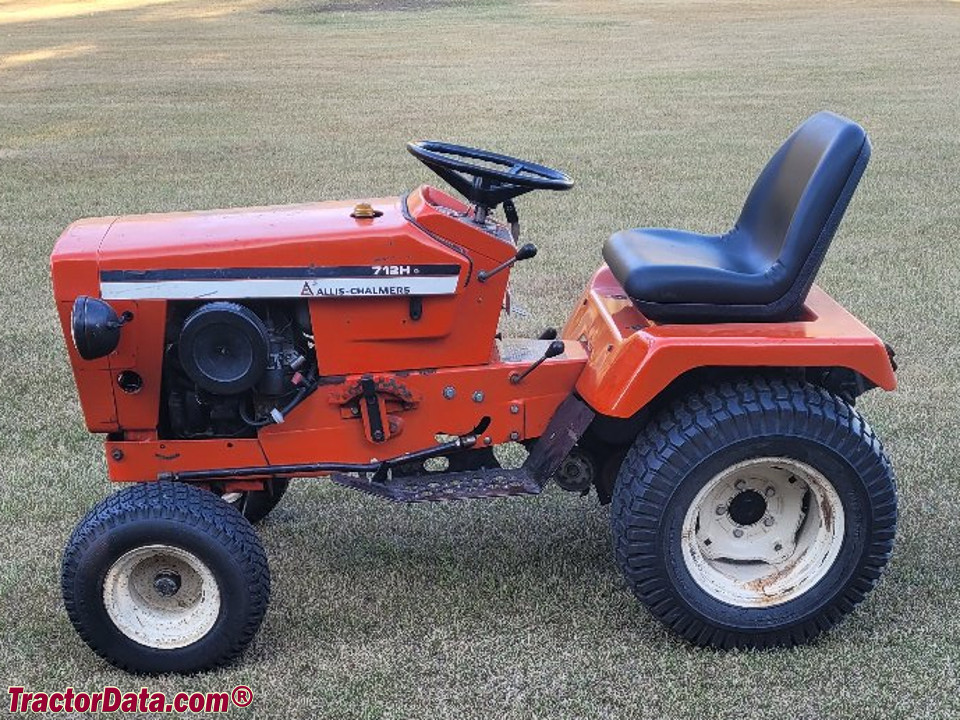

Allis-Chalmers 712H, left side.

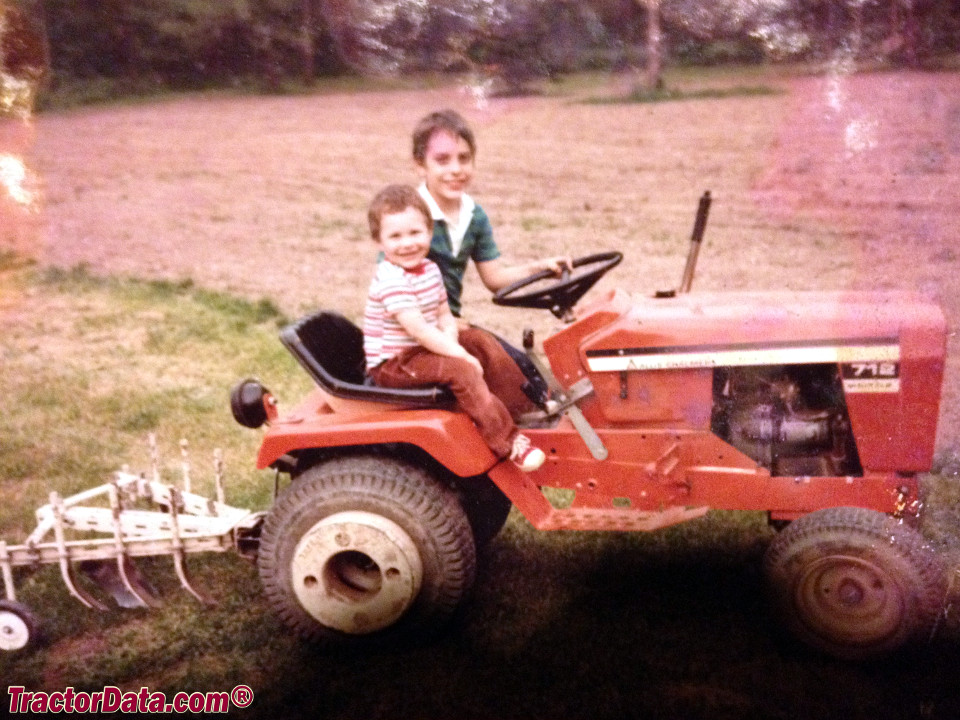

Allis-Chalmers 712H with cultivator, right side.
