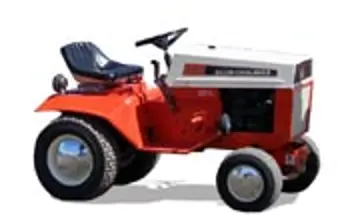

Allis Chalmers 414

The Allis Chalmers 414 is a tractor produced by Allis Chalmers Lawn Tractors. It is equipped with a 512 cc 31.27 ci engine. The listed engine power is Gasoline (gross): 14 hp / 10.4 kW. Transmission: 4 forward and reverse. Operating weight: 852 lbs 386 kg.

Overview

	1973 400 SeriesGarden tractor 400 Series Garden tractor

Production
Manufacturer	Allis Chalmers
Garden tractor
Built in Lexington, South Carolina, USA
The Allis-Chalmers 414 was Simpicity model code 1600259. There was no equivalent Simplicity model.

Allis Chalmers 414 Engine
14HP Kohler 512cc 1-cyl gasoline
Fuel tank	3.5 gal 13.2 L
Engine details ...

Allis Chalmers 414 Transmission
4-speed shuttle
Transmission details ...

Mechanical
Two-wheel drive
Steering	manual
Open operator station.

Power Take-off (PTO)
Rear PTO	optional
Rear PTO Type	540
Front PTO	independent
Clutch	electric
Front PTO Type	3600

Dimensions & Tires
Wheelbase	48.1 inches 122 cm
Weight	852 lbs 386 kg
Front tire	16-6.50x8
Rear tire	23-10.50x12
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	flywheel alternator
Charging amps	15
Battery volts	12

References
Operator's Manual 400 Series Tractor (TP-1504) published in 1973
Yardpower published in 1973, by Allis-Chalmers

Engine

Engine Detail — 512 cc / 31.27 ci Gasoline

Manufacturer	Kohler
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled
Displacement	512 cc 31.27 ci
Power (gross)	14 hp 10.4 kW
Air cleaner	dry element
Rated RPM	3600
Starter	electric
Starter volts	12
Oil capacity	2 qts 1.9 L
Oil change	25 h

Transmission

Transmission — 4 forward and reverse shuttle

Type	shuttle
Gears	4 forward and reverse
Oil capacity	1.5 qts 1.4 L
Four speed transmission with right-hand shuttle lever. Tractor must be stopped to shift gears and shuttle lever in neutral, or the clutch/brake pedal fully depressed.

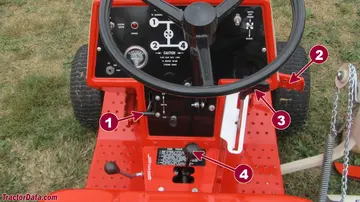

414 Transmission Controls
1	Throttle
2	Clutch/brake
3	Shuttle shift
4	Gear shift

Dimensions

Allis Chalmers 414 Tires
Lawn/turf front	16-6.50x8
Lawn/turf rear	23-10.50x12

Dimensions
Wheelbase	48.1 inches 122 cm
Length	74 inches 187 cm
Width	38.5 inches 97 cm
Height (steering wheel)	43 inches 109 cm
Height (hood)	39 inches 99 cm
Weight	852 lbs 386 kg
Clearance (front axle)	8 inches 20 cm
Clearance (rear axle)	6 inches 15 cm
Clearance (drawbar)	7.5 inches 19 cm
Front tread	30.7 inches 77 cm
Rear tread	28 inches 71 cm

Attachments

Attachment overview
42" mid-mount mower deck
48" mid-mount mower deck
Snowblower
Blade
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

Photos

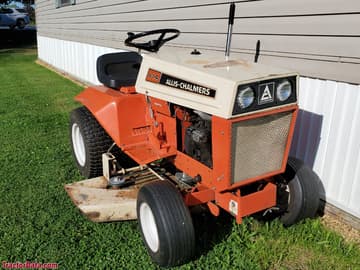

Allis Chalmers 414

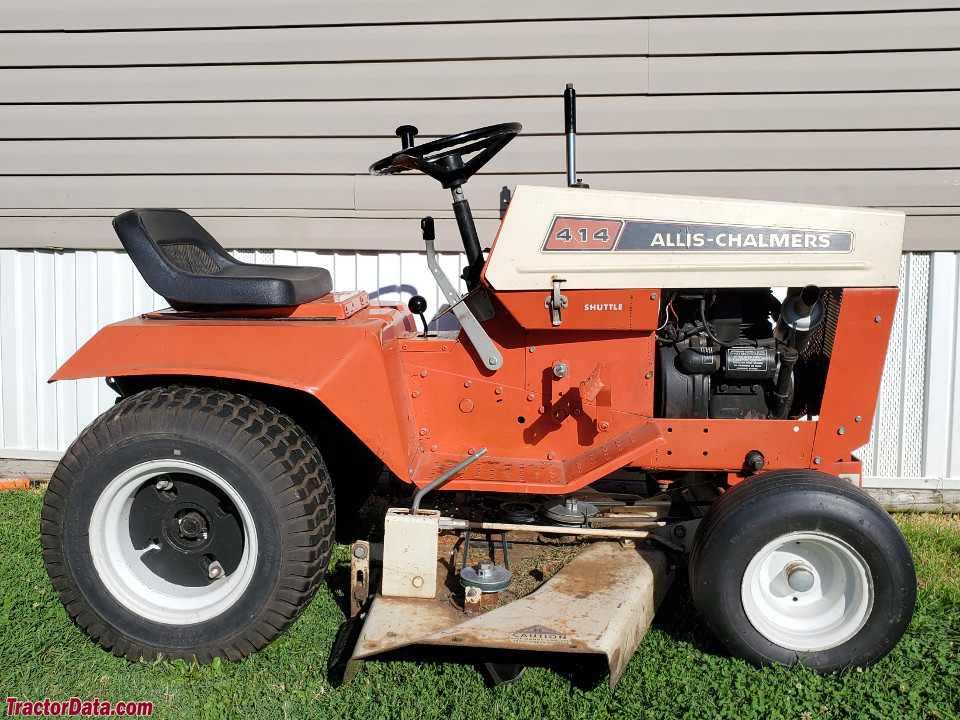

Allis Chalmers 414
