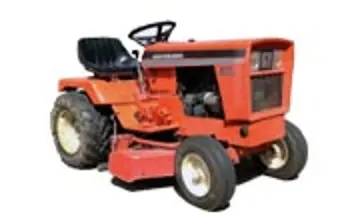

Allis Chalmers 914

The Allis Chalmers 914 is a tractor produced by Allis Chalmers Lawn Tractors. It is equipped with a 512 cc 31.27 ci engine. The listed engine power is Gasoline (listed): 14 hp / 10.4 kW. Transmission: 4 forward and reverse. Operating weight: 665 to 687 pounds.

Overview

	1979 - 1985 900 SeriesGarden tractor 900 Series Garden tractor

Production
Manufacturer	Allis Chalmers
Garden tractor
Built in Port Washington, Wisconsin, USA
Original price was $4,999 in 1985

Allis Chalmers 914 Engine
14HP Kohler 512cc 1-cyl gasoline
Fuel tank	3 gal 11.4 L
Engine details ...

Mechanical
Two-wheel drive
Manual steering
Mechanical band brakes
Open operator station.

Tractor hitch
Type	sleeve hitch

Power Take-off (PTO)
Rear PTO	live
Mid PTO	live
Front PTO	live

Dimensions & Tires
Wheelbase	50.7 inches 128 cm
Weight	665 to 687 pounds
Front tire	16-6.50x8
Rear tire	23-8.50x12
Full dimensions and tires ...

Links
SimpleTractors.com: information, photos and old advertising literature at SimpleTractors.com

Electrical
Ground	negative
Charging system	flywheel alternator
Charging amps	15
Battery volts	12
Battery AH	45

References
900 Series Garden Tractors published in 1979, by Allis-Chalmers
Operator's Manual 900 Series Tractor (1666746) published in 1980
914 Shuttle published in 1979, by Allis-Chalmers
900 & T-800 Series Gardenpower published in 1982, by Allis-Chalmers
1983 Lawn and Garden Line published by Allis-Chalmers
1984 Lawn and Garden Line published by Allis-Chalmers
1985 Lawn and Garden Line published by Allis-Chalmers

Engine

Engine Detail — 512 cc / 31.27 ci Gasoline

Manufacturer	Kohler K321
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled horizontal-shaft
Displacement	512 cc 31.27 ci
Bore/Stroke	3.5x3.25 inches 89 x 83 mm
Power	14 hp 10.4 kW
Air cleaner	dry
Rated RPM	3600
Starter	electric
Starter volts	12

Transmission

Transmission options
hydrostatic
4-speed shuttle

Transmission — infinite forward and reverse belt-driven hydrostatic

Type	belt-driven hydrostatic
Gears	infinite forward and reverse
Oil capacity	3 qts 2.8 L
Oil type	Allis-Chalmers Power Fluid 821
Oil change	400 h

	Allis-Chalmers Power Fluid 821

Transmission — 4 forward and reverse shuttle

Type	shuttle
Gears	4 forward and reverse

Dimensions

Allis Chalmers 914 Tires
Lawn/turf front	16-6.50x8
Lawn/turf rear	23-8.50x12

Dimensions
Wheelbase	50.7 inches 128 cm
Length	70 inches 177 cm
Width	36.9 inches 93 cm
Height (steering wheel)	39.7 inches 100 cm
Height (hood)	35.7 inches 90 cm
Shuttle Weight	665 lbs 301 kg
Hydro Weight	687 lbs 311 kg
Clearance (front axle)	8 inches 20 cm
Front tread	30 inches 76 cm
Rear tread	27 inches 68 cm

Attachments

Attachment overview
42" mid-mount mower deck
48" mid-mount mower deck
Snowblower
Blade
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

Photos

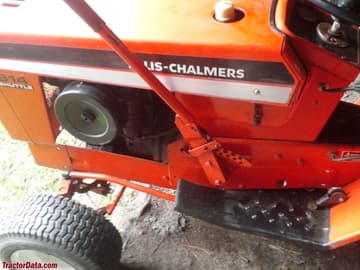

Left side of the Allis-Chalmers 914 Shuttle.
