AMF 1260
The AMF 1260 is a tractor produced by Amf Lawn Tractors. The listed engine power is Gasoline (gross): 8 hp / 6.0 kW. Transmission: 3 forward and 1 reverse. Operating weight: 282 lbs 127 kg.
Engine Power
Gasoline (gross): 8 hp / 6.0 kW
Fuel & Capacities
Gasoline
Transmission
3 forward and 1 reverse
Operating Weight
282 lbs
127 kg
Overview
 | 1975
Lawn tractor |
|---|
Production | |
|---|---|
Manufacturer | AMF |
Lawn tractor | |
Built in Des Moines, Iowa, USA | |
AMF 1260 Engine | |
|---|---|
8HP Briggs & Stratton 1-cyl gasoline | |
Engine details ...  |
AMF 1260 Transmission | |
|---|---|
3-speed gear | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station. |
Dimensions & Tires | |
|---|---|
Wheelbase | 40 inches
101 cm |
Weight | 282 lbs
127 kg |
Front tire | 11-4.00 |
Rear tire | 16-6.50 |
Full dimensions and tires ...  | |
Engine
Engine Detail — Gasoline
Manufacturer | Briggs & Stratton |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled vertical-shaft |
Power (gross) | 8 hp
6.0 kW |
Starter type | manual recoil |
Transmission
Transmission — 3 forward and 1 reverse belt-driven gear
Type | belt-driven gear |
Gears | 3 forward and 1 reverse |
Dimensions
AMF 1260 Tires | |
|---|---|
Lawn/turf front | 11-4.00 |
Lawn/turf rear | 16-6.50 |
Dimensions | |
|---|---|
Wheelbase | 40 inches
101 cm |
Length | 56 inches
142 cm |
Height (steering wheel) | 33 inches
83 cm |
Shipping weight | 282 lbs
127 kg |
Attachments
26" Mower deck | |
|---|---|
Type | mid-mount AMF |
Cutting width | 26 inches
66 cm |
Photos

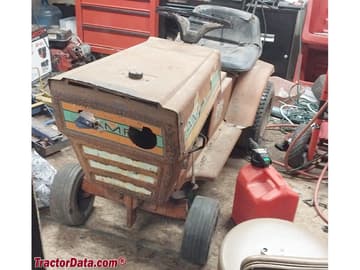

AMF 1260 lawn tractor.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Amf Lawn Tractors AMF 1260.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Amf Lawn Tractors AMF 1260 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Amf Lawn Tractors AMF 1260.
Converted Equivalents:
Horsepower (HP)8 hp
Kilowatts (kW)6 kW
Metric Horsepower (PS / CV)8.1 PS
