AMF 1261
The AMF 1261 is a tractor produced by Amf Lawn Tractors. It is equipped with a 318 cc 19.44 ci engine. The listed engine power is Gasoline (gross): 8 hp / 6.0 kW. Transmission: 3 forward and 1 reverse.
Engine Power
Gasoline (gross): 8 hp / 6.0 kW
Fuel & Capacities
Gasoline
Transmission
3 forward and 1 reverse
Overview
 | 1977
Lawn tractor |
|---|
Production | |
|---|---|
Manufacturer | AMF |
Lawn tractor | |
Built in Des Moines, Iowa, USA | |
Original price was $650 in 1977 | |
AMF 1261 Engine | |
|---|---|
8HP Briggs & Stratton 318cc 1-cyl gasoline | |
Engine details ...  |
AMF 1261 Transmission | |
|---|---|
3-speed gear | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station. |
Dimensions & Tires | |
|---|---|
Front tire | 13x5.00-6 |
Rear tire | 16x7.50-8 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
Engine
Engine Detail — 318 cc / 19.44 ci Gasoline
Manufacturer | Briggs & Stratton 190000 |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled vertical-shaft |
Displacement | 318 cc
19.44 ci |
Bore/Stroke | 3.00x2.75 inches
76 x 70 mm |
Power (gross) | 8 hp
6.0 kW |
Starter | electric |
Starter volts | 12 |
Transmission
Transmission — 3 forward and 1 reverse gear
Type | gear |
Gears | 3 forward and 1 reverse |
Dimensions
AMF 1261 Tires | |
|---|---|
Lawn/turf front | 13x5.00-6 |
Lawn/turf rear | 16x7.50-8 |
Dimensions |
|---|
Attachments
32" Mower deck | |
|---|---|
Type | mid-mount AMF |
2-blade | |
Cutting width | 32 inches
81 cm |
Cut height | 1.5 to 3 inch
3 to 7 cm |
Photos

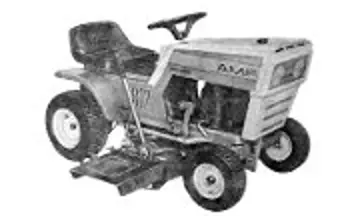

AMF 1261 tractor photo
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Amf Lawn Tractors AMF 1261.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Amf Lawn Tractors AMF 1261 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Amf Lawn Tractors AMF 1261.
Converted Equivalents:
Horsepower (HP)8 hp
Kilowatts (kW)6 kW
Metric Horsepower (PS / CV)8.1 PS
