Antonio Carraro Tigrone 5800

The Antonio Carraro Tigrone 5800 is a tractor produced by Antonio Carraro. It is equipped with a 133.6 ci 2.2 L engine. The listed engine power is Diesel (gross): 48 hp / 35.8 kW. Transmission: 8 forward and 4 reverse. Operating weight: 3417 lbs 1549 kg.

Overview

	Compact Utility tractor	Compact Utility tractor

Production
Manufacturer	Antonio Carraro
Compact Utility tractor
Built in Italy

Antonio Carraro Tigrone 5800 Engine
Yanmar 2.2L 4-cyl diesel
Fuel tank	10.6 gal 40.1 L
Engine details ...

Antonio Carraro Tigrone 5800 Transmission
8-speed gear
Transmission details ...

Antonio Carraro Tigrone 5800 Power
Engine (gross)	48 hp 35.8 kW

Mechanical
Four-wheel drive
Steering	hydraulic power
Mechanical wet disc brakes
Two-post folding ROPS.

Tractor hitch
Rear Type	I
Rear lift	4409 lbs 1999 kg

Power Take-off (PTO)
Rear PTO Type	540 (1.375)

Dimensions & Tires
Wheelbase	54.5 inches 138 cm
Weight	3417 lbs 1549 kg
Front tire	7.50x16
Rear tire	7.50x16
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

Engine

Engine Detail — 133.6 ci / 2.2 L Diesel

Manufacturer	Yanmar 4TNV88
Fuel Type	Diesel
Configuration	4-cylinder, liquid-cooled
Displacement	133.6 ci 2.2 L
Bore/Stroke	3.46x3.54 inches 88 x 90 mm
Emissions	Stage 3A
Rated Power (gross)	48 hp 35.8 kW
Fuel system	direct injection
Rated RPM	2600
Torque	103.3 lb-ft 140.1 Nm
Torque RPM	1680
Starter	electric
Starter volts	12

Transmission

Transmission — 8 forward and 4 reverse gear

Type	gear
Gears	8 forward and 4 reverse

Dimensions

Antonio Carraro Tigrone 5800 Tires
Ag front	7.50x16
	8.25x16
	7.50x18
Ag rear	7.50x16
	8.25x16
	7.50x18

Dimensions
Wheelbase	54.5 inches 138 cm
Length	123.6 inches 313 cm
Width	48.6 inches 123 cm
Height (ROPS)	81.1 inches 205 cm
Weight	3417 lbs 1549 kg

Photos

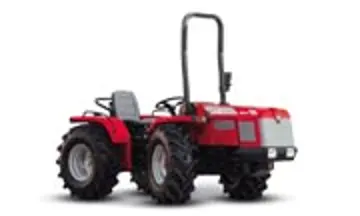

Antonio Carraro Tigrone 5800 tractor photo
