Ariens Emperor 8 925005
The Ariens Emperor 8 925005 is a tractor produced by Ariens Lawn Tractors. It is equipped with a 318 cc 19.44 ci engine. The listed engine power is Gasoline (listed): 8 hp / 6.0 kW. Transmission: Disc-O-Matic.
Engine Power
Gasoline (listed): 8 hp / 6.0 kW
Fuel & Capacities
Gasoline
Transmission
Disc-O-Matic
Overview
 | 1972 - 1978
Model year 19721973-19751976-1978
Emperor 925 SeriesRiding lawn mower
Emperor 925 Series
Riding lawn mower |
|---|
Production | |
|---|---|
Manufacturer | Ariens |
Riding lawn mower | |
Built in Brillion, Wisconsin, USA | |
Ariens Emperor 8 Engine | |
|---|---|
8HP Briggs& Stratton 318cc 1-cyl gasoline | |
Engine details ...  |
Ariens Emperor 8 Transmission | |
|---|---|
6-speed friction disc | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station. |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | mechanical idler |
Dimensions & Tires | |
|---|---|
Full dimensions and tires ...  |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
Emperor Tractor and Attachments (PM 25000) published in 1978 |
Engine
Engine Detail — 318 cc / 19.44 ci Gasoline
Manufacturer | Briggs& Stratton 191707 |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled vertical-shaft |
Displacement | 318 cc
19.44 ci |
Bore/Stroke | 3.00x2.75 inches
76 x 70 mm |
Power | 8 hp
6.0 kW |
Starter | electric |
Starter volts | 12 |
Transmission
Transmission — Disc-O-Matic
Transmission | Disc-O-Matic |
Type | friction disc |
Gears | 6 forward and 1 reverse |
Dimensions
Ariens Emperor 8 Tires |
|---|
Dimensions |
|---|
Attachments
Attachment overview | |
|---|---|
30" mid-mount mower deck | |
Blade |
30" Mower deck | |
|---|---|
Type | mid-mount Ariens |
1-blade | |
Cutting width | 30 inches
76 cm |
Cut height | 1.5 to 4.5 inch
3 to 11 cm |
Photos

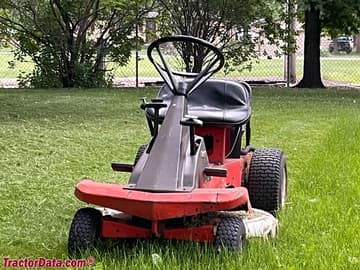

Ariens Emperor 8 925005
Ariens Emperor 8 925005
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Ariens Lawn Tractors Ariens Emperor 8 925005.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Ariens Lawn Tractors Ariens Emperor 8 925005 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Ariens Lawn Tractors Ariens Emperor 8 925005.
Converted Equivalents:
Horsepower (HP)8 hp
Kilowatts (kW)6 kW
Metric Horsepower (PS / CV)8.1 PS
