Ariens Fairway 7
The Ariens Fairway 7 is a tractor produced by Ariens Lawn Tractors. It is equipped with a 245 cc 15 ci engine. The listed engine power is Gasoline (listed): 7 hp / 5.2 kW. Transmission: Disc-O-Matic.
Engine Power
Gasoline (listed): 7 hp / 5.2 kW
Fuel & Capacities
Gasoline
Transmission
Disc-O-Matic
Overview
 | 1972 - 1976
Fairway SeriesRiding lawn mower
Fairway Series
Riding lawn mower |
|---|
Production | |
|---|---|
Manufacturer | Ariens |
Riding lawn mower | |
Built in Brillion, Wisconsin, USA | |
Original price | $530 (1972 ) |
$670 (1976 ) | |
Variants | |
|---|---|
912002 | recoil start |
912003 | electric start |
Ariens Fairway 7 Engine | |
|---|---|
7HP Tecumseh 245cc 1-cyl gasoline | |
Engine details ...  |
Ariens Fairway 7 Transmission | |
|---|---|
4-speed friction disk | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Mechanical band brakes | |
Open operator station. |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | mechanical idler |
Dimensions & Tires | |
|---|---|
Full dimensions and tires ...  |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
Engine
Engine Detail — 245 cc / 15 ci Gasoline
Manufacturer | Tecumseh V70 |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled vertical-shaft |
Displacement | 245 cc
15 ci |
Bore/Stroke | 2.75x2.531 inches
70 x 64 mm |
Power | 7 hp
5.2 kW |
Starter | manual recoil |
electric OptOptional | |
Starter volts | 12 |
Transmission
Transmission — Disc-O-Matic
Transmission | Disc-O-Matic |
Type | friction disk |
Gears | 4 forward and 1 reverse |
 | |
Dimensions
Ariens Fairway 7 Tires |
|---|
Dimensions |
|---|
Attachments
26" Mower deck | |
|---|---|
Type | mid-mount Ariens |
1-blade | |
Cutting width | 26 inches
66 cm |
Cut height | 1.5 to 3.25 inch
3 to 8 cm |
Photos

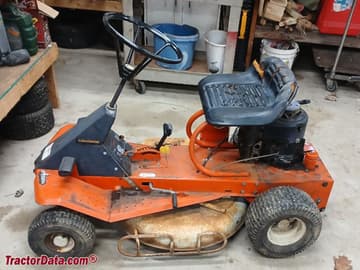

Ariens Fairway 7 riding lawn mower.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Ariens Lawn Tractors Ariens Fairway 7.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Ariens Lawn Tractors Ariens Fairway 7 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Ariens Lawn Tractors Ariens Fairway 7.
Converted Equivalents:
Horsepower (HP)7 hp
Kilowatts (kW)5.2 kW
Metric Horsepower (PS / CV)7.1 PS
