ariens lawn tractors gt16

Ariens GT16 931023 tractor photo
1979 - 1982 Garden tractor
1979 - 1982
Garden tractor
1979 - 1982
Garden tractor
1979 - 1982
Garden tractor
Engine Detail
Kohler K341
gasoline
1-cylinder
air-cooled horizontal-shaft
Displacement
588 cc 35.90 ci
Bore/Stroke
3.75x3.25 inches 95 x 83 mm
Power (gross)
16 hp 11.9 kW
Fuel use
1.50 gal/hour 5.7 l/hour
Air cleaner
dry element with foam precleaner
Compression
7.3:1
Starter
electric
Starter volts
12
Sparkplug gap
0.025 inches 0.635 mm
Engine Oil

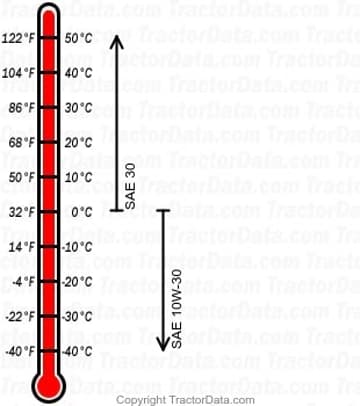

GT16 931023 gasoline engine oil chart
Oil capacity
2 qts 1.9 L
