Ariens Manorway 800
The Ariens Manorway 800 is a tractor produced by Ariens Lawn Tractors. It is equipped with a 318 cc 19.44 ci engine. The listed engine power is Gasoline (gross): 8 hp / 6.0 kW. Transmission: 6 forward and 2 reverse. Operating weight: 455 lbs 206 kg.
Engine Power
Gasoline (gross): 8 hp / 6.0 kW
Fuel & Capacities
0.75 gal
2.8 L
Transmission
6 forward and 2 reverse
Operating Weight
455 lbs
206 kg
Overview
 | 1971 - 1973
Lawn tractor |
|---|
Production | |
|---|---|
Manufacturer | Ariens |
Lawn tractor | |
Built in Brillion, Wisconsin, USA | |
Original price was $900 in 1970 | |
Variants |
|---|
Ariens Manorway 800 Engine | |
|---|---|
8HP Briggs & Stratton 318cc 1-cyl gasoline | |
Fuel tank | 0.75 gal
2.8 L |
Engine details ...  | |
Ariens Manorway 800 Transmission | |
|---|---|
6-speed gear | |
Transmission details ...  |
Mechanical | |
|---|---|
Steering | manual |
Open operator station. | |
Dimensions & Tires | |
|---|---|
Wheelbase | 45.5 inches
115 cm |
Weight | 455 lbs
206 kg |
Front tire | 13x5.00-6 |
Rear tire | 18x8.50-8 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
Engine
Engine Detail — 318 cc / 19.44 ci Gasoline
Manufacturer | Briggs & Stratton 191707 |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled |
Displacement | 318 cc
19.44 ci |
Bore/Stroke | 3.0x2.75 inches
76 x 70 mm |
Power (gross) | 8 hp
6.0 kW |
Starter | electric |
Starter volts | 12 |
Transmission
Transmission — 6 forward and 2 reverse gear
Type | gear |
Gears | 6 forward and 2 reverse |
Dimensions
Ariens Manorway 800 Tires | |
|---|---|
Lawn/turf front | 13x5.00-6 |
Lawn/turf rear | 18x8.50-8 |
Dimensions | |
|---|---|
Wheelbase | 45.5 inches
115 cm |
Length | 61 inches
154 cm |
Width | 29.75 inches
75 cm |
Height | 34.5 inches
87 cm |
Shipping weight | 455 lbs
206 kg |
Attachments
Attachment overview | |
|---|---|
38" mid-mount mower deck | |
Snowblower | |
Blade |
38" Mower deck | |
|---|---|
Type | mid-mount Ariens |
Cutting width | 38 inches
96 cm |
Overall width | 41 inches
104 cm |
Cut height | 1.5 to 4.0 inch
3 to 10 cm |
Photos

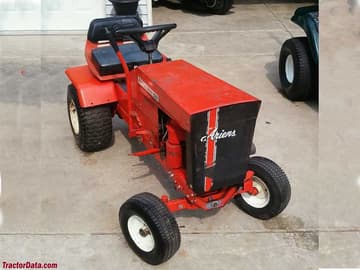

Ariens Manorway 800
Ariens Manorway 800
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Ariens Lawn Tractors Ariens Manorway 800.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Ariens Lawn Tractors Ariens Manorway 800 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Ariens Lawn Tractors Ariens Manorway 800.
Converted Equivalents:
Horsepower (HP)8 hp
Kilowatts (kW)6 kW
Metric Horsepower (PS / CV)8.1 PS
