ATC Terratrac 400
The ATC Terratrac 400 is a tractor produced by Atc. It is equipped with a 157 ci 2.6 L engine. The listed engine power is Gasoline (gross): 42.5 hp / 31.7 kW; Diesel (gross): 38 hp / 28.3 kW. Transmission: 3 forward and 1 reverse. Drive type: crawler. Operating weight: 5125 to 8190 pounds.
Engine Power
Gasoline (gross): 42.5 hp / 31.7 kW; Diesel (gross): 38 hp / 28.3 kW
Drive & Traction
crawler
Fuel & Capacities
Diesel
Transmission
3 forward and 1 reverse
Operating Weight
5125 to 8190 pounds
Overview
 | 1954 - 1956
Model year 1954-19551955-1956
Agricultural Crawler tractor |
|---|
Production | |
|---|---|
Manufacturer | ATC |
Agricultural Crawler tractor | |
Built in Churubusco, Indiana, USA | |
ATC 400 Transmission | |
|---|---|
3-speed gear | |
Transmission details ...  |
ATC 400 Power | |
|---|---|
Engine (gross) | 42.5 hp
31.7 kW |
Mechanical | |
|---|---|
Drive | crawler |
Final drives | spur gear |
Open operator station. | |
Hydraulics | |
|---|---|
Type | open center |
Pump flow | 11 gpm
41.6 lpm |
Dimensions & Tracks | |
|---|---|
Weight | 5125 to 8190 pounds |
12-inch tracks | |
Full dimensions and tracks ...  | |

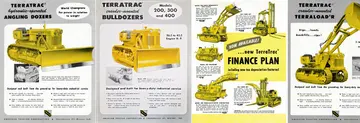

References | |
|---|---|
 | |
TerraTrac hydraulic-operated Angling Dozers published in 1955, by American Tractor Corporation | |
TerraTrac crawler-mounted Bulldozers published in 1955, by American Tractor Corporation | |
New TerraTrac Finance Plan published in 1954, by American Tractor Corporation | |
Terratrac crawler-mounted Terraload'r published in 1954, by American Tractor Corporation |
Engine
Engine options | |
|---|---|
Continental 2.7L 4-cyl gasoline | |
Continental 2.6L 4-cyl diesel |
Engine Detail — 162 ci / 2.7 L Gasoline
Manufacturer | Continental F-162 |
Fuel Type | Gasoline |
Configuration | 4-cylinder, liquid-cooled |
Displacement | 162 ci
2.7 L |
Bore/Stroke | 3.44x4.375 inches
87 x 111 mm |
Power (gross) | 42.5 hp
31.7 kW |
Rated RPM | 1850 |
Torque | 124.3 lb-ft
168.6 Nm |
Starter | electric |
Starter volts | 6 |
Engine Detail — 157 ci / 2.6 L Diesel
Manufacturer | Continental GD-157 |
Fuel Type | Diesel |
Configuration | 4-cylinder, liquid-cooled |
Displacement | 157 ci
2.6 L |
Bore/Stroke | 3.375x4.375 inches
86 x 111 mm |
Power (gross) | 38 hp
28.3 kW |
Rated RPM | 1850 |
Torque | 110 lb-ft
149.2 Nm |
Starter | electric |
Starter volts | 12 |
Transmission
Transmission — 3 forward and 1 reverse gear
Type | gear |
Gears | 3 forward and 1 reverse |
Clutch | dry disc |
 | |
Dimensions
ATC 400 Tracks | |
|---|---|
Width | 12 inches
30 cm |
Length on ground | 57 inches
144 cm |
Area on ground | 1368 in²
0.9 m² |
Dimensions | |
|---|---|
Length | 101 inches
256 cm |
Height | 63.5 inches
161 cm |
Ground clearance | 16 inches
40 cm |
ATC 400 Weight | |
|---|---|
5125 lbs (tractor)
2324 kg | |
5805 lbs (dozer)
2633 kg | |
8190 lbs (loader)
3714 kg | |
Attachments
Attachment overview | |
|---|---|
Blade | |
Front-end loader |
