ATC Terratrac 200
The ATC Terratrac 200 is a tractor produced by Atc. It is equipped with a 140 ci 2.3 L engine. The listed engine power is Gasoline (gross): 36.5 hp / 27.2 kW. Transmission: 3 forward and 1 reverse. Drive type: crawler. Operating weight: 4860 lbs 2204 kg.
Engine Power
Gasoline (gross): 36.5 hp / 27.2 kW
Drive & Traction
crawler
Fuel & Capacities
10 gal
37.9 L
Transmission
3 forward and 1 reverse
Operating Weight
4860 lbs
2204 kg
Overview
 | 1954 - 1956
Model year 1954-19551955-1956
Agricultural Crawler tractor |
|---|
Production | |
|---|---|
Manufacturer | ATC |
Agricultural Crawler tractor | |
Built in Churubusco, Indiana, USA | |
ATC 200 Engine | |
|---|---|
Continental 2.3L 4-cyl gasoline | |
Fuel tank | 10 gal
37.9 L |
Engine details ...  | |
ATC 200 Transmission | |
|---|---|
3-speed gear | |
Transmission details ...  |
ATC 200 Power | |
|---|---|
Engine (gross) | 36.5 hp
27.2 kW |
Drawbar (claimed) | 25.8 hp
19.2 kW |
Plows | 3 *14-inch |
Mechanical | |
|---|---|
Drive | crawler |
Final drives | spur gear |
Contracting band brakes | |
Open operator station. | |
Power Take-off (PTO) | |
|---|---|
Rear PTO | transmission OptOptional |
Rear PTO Type | 540 (1.375) |
Engine RPM | 540@1622 |
Dimensions & Tracks | |
|---|---|
Weight | 4860 lbs
2204 kg |
10-inch tracks | |
Full dimensions and tracks ...  | |
Belt Pulley | |
|---|---|
Diameter | 6 inches
15 cm |
Width | 7 inches
17 cm |
RPM | 664 |
Speed | 1043 ft/min
317.91 meters/min |
References | |
|---|---|
 | |
Model 200 Terratrac Tractor published in 1954, by American Tractor Corporation | |
TerraTrac crawler-mounted Bulldozers published in 1955, by American Tractor Corporation | |
New TerraTrac Finance Plan published in 1954, by American Tractor Corporation |
Engine
Engine Detail — 140 ci / 2.3 L Gasoline
Manufacturer | Continental F-140 |
Fuel Type | Gasoline |
Configuration | 4-cylinder, liquid-cooled |
Displacement | 140 ci
2.3 L |
Bore/Stroke | 3.1875x4.375 inches
81 x 111 mm |
Power (gross) | 36.5 hp
27.2 kW |
Fuel system | carburetor |
Air cleaner | oil bath |
Rated RPM | 1850 |
Starter | electric |
Starter volts | 6 |
Coolant capacity | 12 qts
11.4 L |
Transmission
Transmission — 3 forward and 1 reverse gear
Type | gear |
Gears | 3 forward and 1 reverse |
Clutch | dry disc |
Oil capacity | 3 qts
2.8 L |
5 qts (with PTO)
4.7 L | |
 | |
Dimensions
ATC 200 Tracks | |
|---|---|
Width | 10 inches
25 cm |
Length on ground | 54 inches
137 cm |
Area on ground | 1080 in²
0.7 m² |
Ground pressure | 4.5 psi
0.3 bar |
Width | 12 inches
30 cm |
Length on ground | 54 inches
137 cm |
Area on ground | 1300 in²
0.8 m² |
Ground pressure | 3.5 psi
0.2 bar |
Dimensions | |
|---|---|
Length | 96 inches
243 cm |
Width | 52 inches*Minimum with at 42-inch gauge.
132 cm |
Height (hood) | 51 inches
129 cm |
Weight | 4860 lbs
2204 kg |
Ground clearance | 16 inches
40 cm |
Gauge | 42/48/56/60/66/72 inches
106/121/142/152/167/182 cm |
Photos

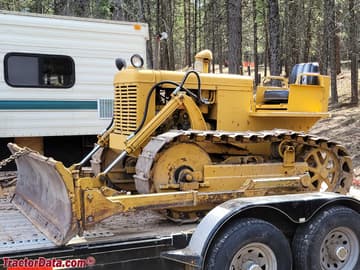

1955 ATC Terratrac 200 crawler with dozer.
Recommended Implements & Sizing Guide
Engineering recommendations for Atc Terratrac 200 based on its 36.5 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 2 to 3 Bottom (14-16")2 - 3 铧 (35-40 cm) | Medium Duty | Standard utility farm tillage. |
Rotary Cutter / MowerMowing & Clearing | 5 ft (60 in)1.5 m | Medium Duty | Pasture maintenance and weeds up to 1.5" diameter. |
Rotary TillerSeedbed Prep | 54 to 60 in135 - 150 cm | Medium Duty | Thorough seedbed preparation in orchards and vegetable plots. |
Disc HarrowSecondary Tillage | 5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片) | Light Duty | Small acreage soil break-up and secondary aeration. |
Hay BalerHay & Forage | Small Square Baler (14x18")小方捆打捆机 (36x46 cm) | Medium Duty | Classic 2-string baler for horse and small livestock hay. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Atc Terratrac 200.
Estimated Continuous Field Runtime: 5.3 hrs
Approximately 5.3 hours of continuous field operation at ~75% rated power on a full tank (10 gal / 37.9 L).
Estimated 75% Load Fuel Burn~1.9 gal/hr (7.2 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Atc Terratrac 200 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Atc Terratrac 200.
Converted Equivalents:
Horsepower (HP)36.5 hp
Kilowatts (kW)27.2 kW
Metric Horsepower (PS / CV)37 PS
Direct Competitor Comparison
Compare ATC Terratrac 200 against same-era industry alternatives in the same horsepower class.
Current Model
Atc
ATC Terratrac 200
Engine Power:Gasoline (gross): 36.5 hp / 27.2 kW
★ Baseline Reference
