Aultman & Taylor 22-45
The Aultman & Taylor 22-45 is a tractor produced by Aultman Taylor. It is equipped with a 760.3 ci 12.5 L engine. Transmission: 2 forward and 1 reverse. Operating weight: 12880 lbs 5842 kg.
Fuel & Capacities
35 gal
132.5 L
Transmission
2 forward and 1 reverse
Operating Weight
12880 lbs
5842 kg
Overview
 | 1918 - 1923
Standard-tread tractor |
|---|
Production | |
|---|---|
Manufacturer | Aultman & Taylor |
Standard-tread tractor | |
Built in Mansfield, Ohio, United States | |
Aultman & Taylor 22-45 Engine | |
|---|---|
Aultman & Taylor 12.5L 4-cyl gasoline | |
Fuel tank | 35 gal
132.5 L |
Aux. fuel | 20 gal
75.7 L |
Engine details ...  | |
Aultman & Taylor 22-45 Transmission | |
|---|---|
2-speed gear | |
Transmission details ...  |
Aultman & Taylor 22-45 Power | |
|---|---|
Drawbar (claimed) | 22 hp
16.4 kW |
Belt (claimed) | 45 hp
33.6 kW |
Drawbar (tested) | 28.10 hp
21.0 kW |
Belt (tested) | 46.66 hp
34.8 kW |
Performance test details ...  | |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station with canopy. |
Dimensions & Tires | |
|---|---|
Wheelbase | 102 inches
259 cm |
Weight | 12880 lbs
5842 kg |
Front tire | 38x10 |
Rear tire | 70x20 |
Full dimensions and tires ...  | |
Engine
Engine Detail — 760.3 ci / 12.5 L Gasoline
Manufacturer | Aultman & Taylor |
Fuel Type | Gasoline |
Configuration | 4-cylinder, liquid-cooled |
Displacement | 760.3 ci
12.5 L |
Bore/Stroke | 5.50x8.00 inches
140 x 203 mm |
Rated RPM | 600 |
Coolant capacity | 340 qts
321.8 L |
Transmission
Transmission — 2 forward and 1 reverse gear
Type | gear |
Gears | 2 forward and 1 reverse |
 | |
Dimensions
Aultman & Taylor 22-45 Tires | |
|---|---|
Ag front | 38x10 (steel) |
Ag rear | 70x20 (steel) |
Dimensions | |
|---|---|
Wheelbase | 102 inches
259 cm |
Length | 166 inches
421 cm |
Height | 125 inches
317 cm |
Weight | 12880 lbs
5842 kg |
Tests
Nebraska Tractor Test 32 | |
|---|---|
Kerosene 2-speed 2WD
July 1 - 19, 1920
Link: Nebraska Tractor Test 32 file | |
Belt power (max) | 46.66 hp
34.8 kW |
Belt fuel use (max) | 6.2 gal/hour
23.5 l/hour |
Drawbar performance | |
Max power | 28.10 hp
21.0 kW |
Max pull | 4986 lbs
2261 kg |
Photos

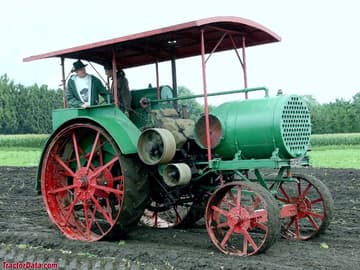

Aultman & Taylor 22-45
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Aultman Taylor Aultman & Taylor 22-45.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Aultman Taylor Aultman & Taylor 22-45 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Aultman Taylor Aultman & Taylor 22-45.
Converted Equivalents:
Horsepower (HP)0 hp
Kilowatts (kW)0 kW
Metric Horsepower (PS / CV)0 PS
