Aultman & Taylor 30-60
The Aultman & Taylor 30-60 is a tractor produced by Aultman Taylor. It is equipped with a 1385.4 ci 22.7 L engine. Transmission: 1 forward and reverse. Operating weight: 24,450 lbs 11090 kg.
Fuel & Capacities
60 gal
227.1 L
Transmission
1 forward and reverse
Operating Weight
24,450 lbs
11090 kg
Overview
 | 1911 - 1924
Standard-tread tractor |
|---|
Production | |
|---|---|
Manufacturer | Aultman & Taylor |
Standard-tread tractor | |
Built in Mansfield, Ohio, United States | |
Aultman & Taylor 30-60 Engine | |
|---|---|
Aultman & Taylor 22.7L 4-cyl gasoline | |
Fuel tank | 60 gal
227.1 L |
Aux. fuel | 20 gal
75.7 L |
Engine details ...  | |
Aultman & Taylor 30-60 Transmission | |
|---|---|
1-speed gear | |
Transmission details ...  |
Aultman & Taylor 30-60 Power | |
|---|---|
Drawbar (tested) | 58.05 hp
43.3 kW |
Belt (tested) | 80.1 hp
59.7 kW |
Performance test details ...  | |
Mechanical | |
|---|---|
Two-wheel drive | |
Open operator station with canopy. |
Dimensions & Tires | |
|---|---|
Wheelbase | 136 inches
345 cm |
Weight | 24,450 lbs
11090 kg |
Front tire | 44x12 |
Rear tire | 90x24 |
Full dimensions and tires ...  | |
Engine
Engine Detail — 1385.4 ci / 22.7 L Gasoline
Manufacturer | Aultman & Taylor |
Fuel Type | Gasoline |
Configuration | 4-cylinder, liquid-cooled |
Displacement | 1385.4 ci
22.7 L |
Bore/Stroke | 7.00x9.00 inches
178 x 229 mm |
Rated RPM | 550 |
Coolant capacity | 480 qts
454.3 L |
Transmission
Transmission — 1 forward and reverse gear
Type | gear |
Gears | 1 forward and reverse |
 | |
Dimensions
Aultman & Taylor 30-60 Tires | |
|---|---|
Ag front | 44x12 (steel) |
Ag rear | 90x24 (steel) |
Dimensions | |
|---|---|
Wheelbase | 136 inches
345 cm |
Length | 218 inches
553 cm |
Height | 136 inches
345 cm |
Weight | 24,450 lbs
11090 kg |
Tests
Nebraska Tractor Test 30 | |
|---|---|
Gasoline 1-speed 2WD
June 30 - July 20, 1920
Link: Nebraska Tractor Test 30 file | |
Belt power (max) | 80.1 hp
59.7 kW |
Belt fuel use (max) | 9.1 gal/hour
34.4 l/hour |
Drawbar performance | |
Max power | 58.05 hp
43.3 kW |
Photos

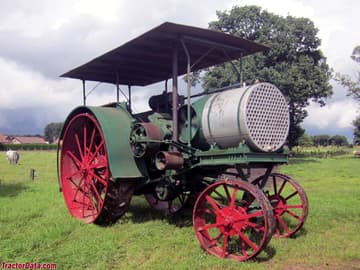

Aultman & Taylor 30-60
Aultman & Taylor 30-60
Aultman & Taylor 30-60 rear view.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Aultman Taylor Aultman & Taylor 30-60.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Aultman Taylor Aultman & Taylor 30-60 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Aultman Taylor Aultman & Taylor 30-60.
Converted Equivalents:
Horsepower (HP)0 hp
Kilowatts (kW)0 kW
Metric Horsepower (PS / CV)0 PS
