Avery 18-36

The Avery 18-36 is a tractor produced by Avery. It is equipped with a 570.2 ci 9.3 L engine. The rated power output is 27 hp 20.1 kW. Transmission: 2 forward and 1 reverse. Operating weight: 9,250 lbs 4195 kg.

Overview

	1916 - 1922 Standard-tread tractor
1916 - 1922
Standard-tread tractor

Production
Manufacturer	Avery
Standard-tread tractor
Built in Peoria, Illinois
Original price was $1,900 in 1916

Avery 18-36 Engine
Avery 9.3L 4-cyl gasoline
Fuel tank	27 gal 102.2 L
Aux. fuel	6 gal 22.7 L
Engine details ...

Avery 18-36 Transmission
2-speed gear
Transmission details ...

Avery 18-36 Power
Engine	27 hp 20.1 kW
Drawbar (claimed)	18 hp 13.4 kW
Belt (claimed)	36 hp 26.8 kW
Drawbar (tested)	27.5 hp 20.5 kW
Belt (tested)	44.50 hp 33.2 kW
Performance test details ...

Mechanical
Two-wheel drive
Steering	manual

Dimensions & Tires
Weight	9,250 lbs 4195 kg
Front tire	35x8
Rear tire	65x20
Full dimensions and tires ...

Engine

Engine Detail — 570.2 ci / 9.3 L Gasoline

Manufacturer	Avery
Fuel Type	Gasoline
Configuration	4-cylinder, liquid-cooled horizontal
Displacement	570.2 ci 9.3 L
Bore/Stroke	5.50x6.00 inches 140 x 152 mm
Power	27 hp 20.1 kW
Rated RPM	800
Coolant capacity	132 qts 124.9 L

Transmission

Transmission — 2 forward and 1 reverse gear

Type	gear
Gears	2 forward and 1 reverse

Dimensions

Avery 18-36 Tires
Ag front	35x8 steel
Ag rear	65x20 steel

Dimensions
Length	152 inches 386 cm
Width	84 inches 213 cm
Height	105 inches 266 cm
Weight	9,250 lbs 4195 kg
Front axle	2.5 inch diameter 63 mm
Rear axle	3.0 inch diameter 76 mm

Tests

Nebraska Tractor Test 58
Kerosene 2-speed 2WD August 25 - September 9, 1920 Link: Nebraska Tractor Test 58 file
Belt power (max)	44.50 hp 33.2 kW
Drawbar performance
Max power	27.5 hp 20.5 kW
Max pull	4,590 lbs 2082 kg

Photos

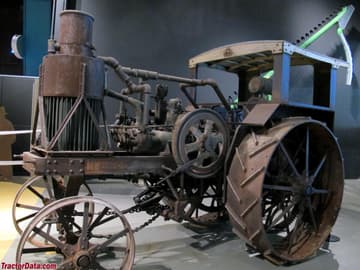

Avery 18-36
