B.F. Avery A
The B.F. Avery A is a tractor produced by B F Avery. It is equipped with a 123 ci 2.0 L engine. Transmission: 3 forward and 1 reverse.
Fuel & Capacities
Gasoline
Transmission
3 forward and 1 reverse
B F Avery B.F. Avery A Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1943 - 1950
Row-Crop tractor |
|---|---|
1943 - 1950 | |
Row-Crop tractor | |
Production | |
|---|---|
Manufacturer | B.F. Avery |
Row-Crop tractor | |
Built in Louisville, Kentucy, USA | |
B.F. Avery A Engine | |
|---|---|
Hercules 2.0L 4-cyl gasoline | |
Engine details ...  |
B.F. Avery A Transmission | |
|---|---|
3-speed unsynchronized gear | |
Transmission details ...  |
B.F. Avery A Power | |
|---|---|
Belt (claimed) | 25 hp
18.6 kW |
Plows | 1 (16-inch) |
2 (14-inch) | |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station. |
Dimensions & Tires | |
|---|---|
Full dimensions and tires ...  |
Belt Pulley | |
|---|---|
Diameter | 8.5 inches
21 cm |
Width | 6.5 inches
16 cm |
Speed | 1035 ft/min
315.47 meters/min |
References | |
|---|---|
 | |
Farm Equipment Catalog published in 1950, by Montgomery Ward |
Engine
Engine Detail — 123 ci / 2.0 L Gasoline
Manufacturer | Hercules IXK |
Fuel Type | Gasoline |
Configuration | 4-cylinder, liquid-cooled |
Displacement | 123 ci
2.0 L |
Bore/Stroke | 3.125x4.00 inches
79 x 102 mm |
Rated RPM | 1450 |
Transmission
Transmission — 3 forward and 1 reverse unsynchronized gear
Type | unsynchronized gear |
Gears | 3 forward and 1 reverse |
 | |
Dimensions
B.F. Avery A Tires |
|---|
Dimensions |
|---|
Photos

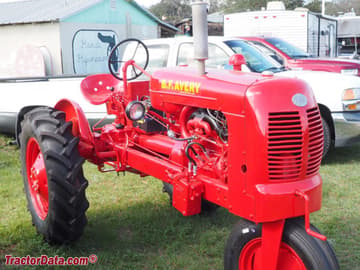

B.F. Avery model A row-crop tractor.
B.F. Avery model A operator station and controls.
B.F. Avery model A, right side.
Detail of the B.F. Avery model A hood emblem.
