bad boy 3026
 | 2021 -
30 SeriesCompact Utility tractorTYM built | 2021 - | 30 Series | Compact Utility tractor | TYM built |
|---|---|---|---|---|---|
2021 - | |||||
30 Series | |||||
Compact Utility tractor | |||||
TYM built | |||||
2021 - | |
|---|---|
30 Series | |
Compact Utility tractor | |
TYM built |
Engine Detail | |
|---|---|
TYM A1100N2 | |
diesel | |
3-cylinder | |
liquid-cooled inline | |
Displacement | 70.7 ci
1.2 L |
Bore/Stroke | 3.07x3.23 inches
78 x 82 mm |
Power (gross) | 24 hp
17.9 kW |
Fuel system | indirect injection |
Air cleaner | dry |
Compression | 21.5:1 |
Rated RPM | 2600 |
Starter | electric |
Starter volts | 12 |

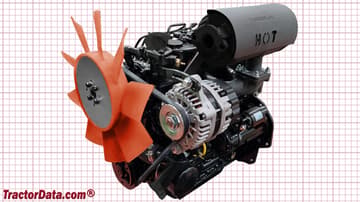

Bad Boy 3026 Engine | |
|---|---|
 |
