Belarus 3011
The Belarus 3011 is a tractor produced by Belarus. It is equipped with a 127 ci 2.1 L engine. The listed engine power is Diesel (listed): 36 hp / 26.8 kW. Transmission: 8 forward and 6 reverse. Operating weight: 4425 lbs 2007 kg.
Engine Power
Diesel (listed): 36 hp / 26.8 kW
Fuel & Capacities
14 gal
53.0 L
Transmission
8 forward and 6 reverse
Operating Weight
4425 lbs
2007 kg
Overview
 | 1997 - 1999
3000 SeriesUtility tractor
3000 Series
Utility tractor |
|---|
Production | |
|---|---|
Manufacturer | Belarus |
Utility tractor | |
Built in Minsk, Belarus | |
Original price was $9,400 in 1999 | |
Variants | |
|---|---|
3011 | 8-speed 2WD |
3021 | 6-speed 2WD |
3045 | 6-speed 4WD |
T-30A | European model designation |
Belarus 3011 Engine | |
|---|---|
MTZ 2.1L 2-cyl diesel | |
Engine details ...  |
Belarus 3011 Transmission | |
|---|---|
8-speed gear | |
Transmission details ...  |
Belarus 3011 Power | |
|---|---|
Engine | 36 hp
26.8 kW |
PTO (claimed) | 28.5 hp
21.3 kW |
Mechanical | |
|---|---|
Two-wheel drive | |
Final drives | spur gear |
Differential lock | mechanical rear |
Manual steering | |
Mechanical disc brakes | |
Open operator station. ROPS and cab available. | |
Capacity | |
|---|---|
Fuel | 14 gal
53.0 L |
Hydraulic system | 2.6 gal
9.8 L |
Hydraulics | |
|---|---|
Capacity | 2.6 gal
9.8 L |
Pressure | 2485 psi
171.3 bar |
Valves | 1 |
Pump flow | 4.2 gpm
15.9 lpm |
Tractor hitch | |
|---|---|
Rear Type | II |
Rear lift (at ends) | 2200 lbs
997 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | transmission |
Rear PTO Type | 540 (1.375) |
Engine RPM | 540@1775 |
Dimensions & Tires | |
|---|---|
Wheelbase | 70 inches
177 cm |
Weight | 4425 lbs
2007 kg |
Front tire | 6.00-16 |
Rear tire | 11.2-28 |
Full dimensions and tires ...  | |
References | |
|---|---|
 | |
3000 Series Tractors published in 1997, by Belarus | |
Trattori published by Belarus |
Engine
Engine Detail — 127 ci / 2.1 L Diesel
Manufacturer | MTZ D-120 |
Fuel Type | Diesel |
Configuration | 2-cylinder, air-cooled |
Displacement | 127 ci
2.1 L |
Bore/Stroke | 4.134x4.724 inches
105 x 120 mm |
Power | 36 hp
26.8 kW |
Air cleaner | oil bath |
Compression | 16.5:1 |
Rated RPM | 2000 |
Starter | electric |
Starter volts | 12 |
Oil capacity | 7.4 qts
7.0 L |
Transmission
Transmission — 8 forward and 6 reverse gear
Type | gear |
Gears | 8 forward and 6 reverse |
Clutch | dry disc |
Oil capacity | 10.5 qts
9.9 L |
Transmission operated with clutch and two levers. The mode selection lever chooses between forward, reverse, or netural. The range selection lever chooses one of eight gears, although SL1 and SL2 are forward only. | |
With 11.2-28 rear tires. | |
 | |
Dimensions
Belarus 3011 Tires | |
|---|---|
Standard tires (ag) | Front: 6.00-16. Rear: 11.2-28 |
Dimensions | |
|---|---|
Wheelbase | 70 inches
177 cm |
Length | 125 inches
317 cm |
Width | 66 inches
167 cm |
Height (ROPS) | 100.5 inches
255 cm |
Shipping weight | 4425 lbs
2007 kg |
Clearance (drawbar) | 12.5 inches
31 cm |
Front tread | 47 to 55 inches
119 to 139 cm |
Rear tread | 47 to 58 inches
119 to 147 cm |
Photos

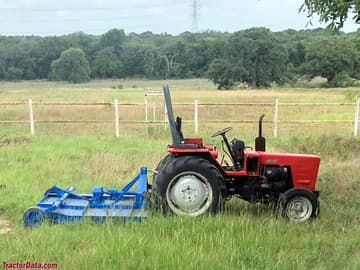

Belarus 3011 with rotary cutter, right side.
Belarus 3011, left side.
Recommended Implements & Sizing Guide
Engineering recommendations for Belarus 3011 based on its 36 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 2 to 3 Bottom (14-16")2 - 3 铧 (35-40 cm) | Medium Duty | Standard utility farm tillage. |
Rotary Cutter / MowerMowing & Clearing | 5 ft (60 in)1.5 m | Medium Duty | Pasture maintenance and weeds up to 1.5" diameter. |
Rotary TillerSeedbed Prep | 54 to 60 in135 - 150 cm | Medium Duty | Thorough seedbed preparation in orchards and vegetable plots. |
Disc HarrowSecondary Tillage | 5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片) | Light Duty | Small acreage soil break-up and secondary aeration. |
Hay BalerHay & Forage | Small Square Baler (14x18")小方捆打捆机 (36x46 cm) | Medium Duty | Classic 2-string baler for horse and small livestock hay. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Belarus 3011.
Estimated Continuous Field Runtime: 7.5 hrs
Approximately 7.5 hours of continuous field operation at ~75% rated power on a full tank (14 gal / 53 L).
Estimated 75% Load Fuel Burn~1.9 gal/hr (7.1 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Belarus 3011 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Belarus 3011.
Converted Equivalents:
Horsepower (HP)36 hp
Kilowatts (kW)26.8 kW
Metric Horsepower (PS / CV)36.5 PS
Direct Competitor Comparison
Compare Belarus 3011 against same-era industry alternatives in the same horsepower class.
Current Model
Belarus
Belarus 3011
Engine Power:Diesel (listed): 36 hp / 26.8 kW
★ Baseline Reference
