Belarus 510
The Belarus 510 is a tractor produced by Belarus. It is equipped with a 290 ci 4.8 L engine. The listed engine power is Diesel (listed): 62 hp / 46.2 kW. Transmission: 9 forward and 2 reverse. Operating weight: 7000 lbs 3175 kg.
Engine Power
Diesel (listed): 62 hp / 46.2 kW
Fuel & Capacities
34 gal
128.7 L
Transmission
9 forward and 2 reverse
Operating Weight
7000 lbs
3175 kg
Overview
 | 1998 - 1999 |
|---|
Production | |
|---|---|
Manufacturer | Belarus |
Built in Minsk, Belarus | |
Original price was $13,000 in 1999 | |
Variants | |
|---|---|
510 | 2WD |
512 | 4WD |
Belarus 510 Engine | |
|---|---|
Belarus 4.8L 4-cyl diesel | |
Fuel tank | 34 gal
128.7 L |
Engine details ...  | |
Belarus 510 Transmission | |
|---|---|
9-speed gear | |
Transmission details ...  |
Belarus 510 Power | |
|---|---|
Engine | 62 hp
46.2 kW |
Mechanical | |
|---|---|
Two-wheel drive | |
ROPS. |
Hydraulics | |
|---|---|
Type | open center |
Valves | 2 |
Pump flow | 11.3 gpm
42.8 lpm |
Tractor hitch | |
|---|---|
Rear Type | II |
Rear lift | 4360 lbs
1977 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540 |
Dimensions & Tires | |
|---|---|
Wheelbase | 93.5 inches
237 cm |
Weight | 7000 lbs
3175 kg |
Front tire | 9.00-20 |
Rear tire | 15.5-38 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
Engine
Engine Detail — 290 ci / 4.8 L Diesel
Manufacturer | Belarus D-244 |
Fuel Type | Diesel |
Configuration | 4-cylinder, liquid-cooled |
Displacement | 290 ci
4.8 L |
Bore/Stroke | 4.33x4.92 inches
110 x 125 mm |
Power | 62 hp
46.2 kW |
Compression | 16:1 |
Rated RPM | 1700 |
Starter volts | 12 |
Coolant capacity | 16 qts
15.1 L |
Transmission
Transmission — 9 forward and 2 reverse gear
Type | gear |
Gears | 9 forward and 2 reverse |
Dimensions
Belarus 510 Tires | |
|---|---|
Ag front | 9.00-20 |
Ag rear | 15.5-38 |
Dimensions | |
|---|---|
Wheelbase | 93.5 inches
237 cm |
Length | 151.6 inches
385 cm |
Width | 77.6 inches
197 cm |
Height | 96.5 inches
245 cm |
Weight | 7000 lbs
3175 kg |
Photos

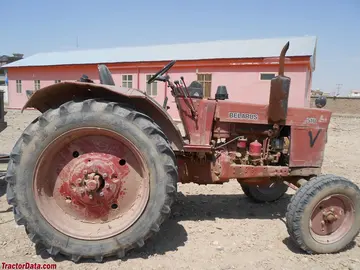

Belarus 510
Recommended Implements & Sizing Guide
Engineering recommendations for Belarus 510 based on its 62 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 3 to 4 Bottom (16")3 - 4 铧 (40 cm) | Heavy Duty | Suitable for medium loam and stubble turnover. |
Rotary Cutter / MowerMowing & Clearing | 6 ft (72 in)1.8 m | Medium Duty | Medium pasture clearing; rear slip-clutch recommended. |
Rotary TillerSeedbed Prep | 66 to 72 in165 - 180 cm | Medium Duty | Standard utility tiller; slip clutch protection required. |
Disc HarrowSecondary Tillage | 7 to 8 ft Tandem Disc2.1 - 2.4 m 对开双排耙 | Medium Duty | Field leveling and clod breaking behind plows. |
Hay BalerHay & Forage | 4x4 to 4x5 Round Baler1.2x1.5 m 紧凑圆捆机 | Heavy Duty | Silage and dry hay; 540 RPM PTO with slip-clutch. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Belarus 510.
Estimated Continuous Field Runtime: 10.5 hrs
Approximately 10.5 hours of continuous field operation at ~75% rated power on a full tank (34 gal / 128.7 L).
Estimated 75% Load Fuel Burn~3.2 gal/hr (12.2 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Belarus 510 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Belarus 510.
Converted Equivalents:
Horsepower (HP)62 hp
Kilowatts (kW)46.2 kW
Metric Horsepower (PS / CV)62.9 PS
Direct Competitor Comparison
Compare Belarus 510 against same-era industry alternatives in the same horsepower class.
Current Model
Belarus
Belarus 510
Engine Power:Diesel (listed): 62 hp / 46.2 kW
★ Baseline Reference
