John Deere 1846F
The John Deere 1846F is a tractor produced by John Deere. It is equipped with a 179 ci 2.9 L engine. The rated power output is 56 hp 41.8 kW. Transmission: 8 forward and reverse. Operating weight: 4949 lbs 2244 kg.
Engine Power
56 hp
41.8 kW
Fuel & Capacities
Diesel
Transmission
8 forward and reverse
Operating Weight
4949 lbs
2244 kg
John Deere 1846F Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1996 - 2003
46 SeriesOrchard/Vineyard tractorGoldini built |
|---|---|
1996 - 2003 | |
46 Series | |
Orchard/Vineyard tractor | |
Goldini built | |
1996 - 2003 | |
|---|---|
46 Series | |
Orchard/Vineyard tractor | |
Goldini built |
Production | |
|---|---|
Distributor | John Deere |
Manufacturer | Goldini |
Orchard/Vineyard tractor | |
Built in Italy | |
John Deere 1846F Engine | |
|---|---|
John Deere 2.9L 3-cyl diesel | |
Engine details ...  |
John Deere 1846F Power | |
|---|---|
Engine | 56 hp
41.8 kW |
PTO (claimed) | 53 hp
39.5 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Differential lock | electro-hydraulic rear |
Power steering | |
Wet disc brakes | |
Two-post mid-mount folding ROPS. | |
Hydraulics | |
|---|---|
Type | open center |
Pressure | 2611 psi
180.0 bar |
Pump flow | 8.7 gpm
32.9 lpm |
13.2 gpmOptOptional
50.0 lpm | |
Tractor hitch | |
|---|---|
Rear Type | II/I |
Rear lift (at ends) | 4740 lbs
2150 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540/540E |
Dimensions & Tires | |
|---|---|
Wheelbase | 75.4 inches
191 cm |
Weight | 4949 lbs
2244 kg |
Front tire | 10.0/75-15.3 |
Rear tire | 380/70R24 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 55 |
Battery volts | 12 |
Engine
| 1996 - 2003
46 SeriesOrchard/Vineyard tractorGoldini built |
|---|---|
1996 - 2003 | |
46 Series | |
Orchard/Vineyard tractor | |
Goldini built | |
1996 - 2003 | |
|---|---|
46 Series | |
Orchard/Vineyard tractor | |
Goldini built |
Engine Detail — 179 ci / 2.9 L Diesel
Manufacturer | John Deere 3029 |
Fuel Type | Diesel |
Configuration | 3-cylinder, liquid-cooled |
Displacement | 179 ci
2.9 L |
Bore/Stroke | 4.19x4.33 inches
106 x 110 mm |
Power | 56 hp
41.8 kW |
Air cleaner | dry |
Rated RPM | 2300 |
Torque | 140.1 lb-ft
190.0 Nm |
Torque RPM | 1300 |
Starter | electric |
Starter volts | 12 |
Transmission
| 1996 - 2003
46 SeriesOrchard/Vineyard tractorGoldini built |
|---|---|
1996 - 2003 | |
46 Series | |
Orchard/Vineyard tractor | |
Goldini built | |
1996 - 2003 | |
|---|---|
46 Series | |
Orchard/Vineyard tractor | |
Goldini built |
Transmission options | |
|---|---|
16-speed synchronized | |
8-speed |

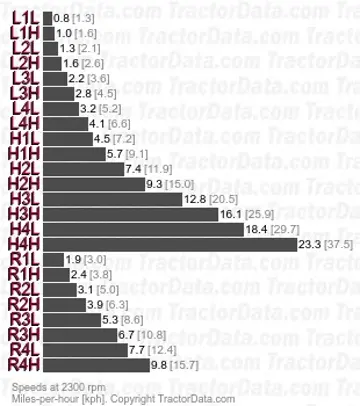

Transmission — 16 forward and 8 reverse synchronized
Type | synchronized |
Gears | 16 forward and 8 reverse |
 | |
Transmission — 8 forward and reverse
Gears | 8 forward and reverse |
Four gears in two ranges with shuttle. | |
 | |
Dimensions
| 1996 - 2003
46 SeriesOrchard/Vineyard tractorGoldini built |
|---|---|
1996 - 2003 | |
46 Series | |
Orchard/Vineyard tractor | |
Goldini built | |
1996 - 2003 | |
|---|---|
46 Series | |
Orchard/Vineyard tractor | |
Goldini built |
John Deere 1846F Tires | |
|---|---|
Standard tires (ag) | Front: 10.0/75-15.3. Rear: 380/70R24 |
Dimensions | |
|---|---|
Wheelbase | 75.4 inches
191 cm |
Length | 130.3 inches
330 cm |
Height (steering wheel) | 54.3 inches
137 cm |
Height (ROPS) | 85.2 inches
216 cm |
Weight | 4949 lbs
2244 kg |
Max weight | 7275 lbs
3299 kg |
