Belarus 5530

The Belarus 5530 is a tractor produced by Belarus. It is equipped with a 100 ci 1.6 L engine. The rated power output is 36 hp 26.8 kW. Transmission: 16 forward and 8 reverse. Operating weight: 3,370 lbs 1528 kg.

Overview

	2011 - Compact Utility tractor
2011 -
Compact Utility tractor

Production
Manufacturer	Belarus
Compact Utility tractor

Belarus 5530 Engine
1.6L 3-cyl diesel
Fuel tank	8.5 gal 32.2 L
Engine details ...

Belarus 5530 Transmission
16-speed
Transmission details ...

Belarus 5530 Power
Engine	36 hp 26.8 kW

Mechanical
Four-wheel drive
Differential lock	rear mechanical
Steering	hydrostatic power
Mechanical wet disc brakes
Cab with heater.

Hydraulics
Pump flow	4.3 gpm 16.3 lpm

Tractor hitch
Rear Type	I
Rear lift (at ends)	1,652 lbs 749 kg

Power Take-off (PTO)
Rear PTO Type	540/1000
Engine RPM	540@2850
	1000@2850

Dimensions & Tires
Wheelbase	67 inches 170 cm
Weight	3,370 lbs 1528 kg
Front tire	7.50x16
Rear tire	12.4x16
Full dimensions and tires ...

Engine

Engine Detail — 100 ci / 1.6 L Diesel

Manufacturer	LDW 1603/B3
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled
Displacement	100 ci 1.6 L
Bore/Stroke	3.25x3.50 inches 83 x 89 mm
Power	36 hp 26.8 kW
Rated RPM	3000

Transmission

Transmission — 16 forward and 8 reverse

Gears	16 forward and 8 reverse
Clutch	dry disc

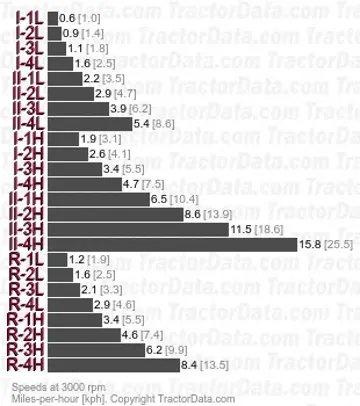

Four gears (1-4) in two ranges (I-II) plus reverse (R) with high/low range.
With 12.4Lx16 rear tires.

Dimensions

Belarus 5530 Tires
Standard tires (ag)	Front: 7.50x16. Rear: 12.4x16

Dimensions
Wheelbase	67 inches 170 cm
Length	128 inches 325 cm
Width	66.75 inches 169 cm
Height (cab)	84.75 inches 215 cm
Weight	3,370 lbs 1528 kg
Ground clearance	13.25 inches 33 cm

Photos

Belarus 5530 with loader.

Belarus 5530 with loader.

Belarus 5530 with loader.

Belarus 5530 operator station and controls.

Belarus 5530 rear view.
