Belarus 5570
The Belarus 5570 is a tractor produced by Belarus. It is equipped with a 290 ci 4.8 L engine. The listed engine power is Diesel (listed): 87 hp / 64.9 kW. Transmission: 14 forward and 4 reverse. Operating weight: 9,471 lbs 4296 kg.
Engine Power
Diesel (listed): 87 hp / 64.9 kW
Fuel & Capacities
28.6 gal
108.3 L
Transmission
14 forward and 4 reverse
Operating Weight
9,471 lbs
4296 kg
Overview
 | 2011 -
Utility tractor |
|---|---|
2011 - | |
Utility tractor | |
Production | |
|---|---|
Manufacturer | Belarus |
Utility tractor | |
Belarus 5570 Engine | |
|---|---|
4.8L 4-cyl diesel | |
Fuel tank | 28.6 gal
108.3 L |
Engine details ...  | |
Belarus 5570 Transmission | |
|---|---|
14-speed partially synchronized | |
Transmission details ...  |
Belarus 5570 Power | |
|---|---|
Engine | 87 hp
64.9 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Differential lock | hydraulic rear |
Steering | hydrostatic power |
Mechanical wet disc brakes | |
Cab with heater. | |
Tractor hitch | |
|---|---|
Rear Type | II |
Control | draft and position control |
Rear lift (at ends) | 7,048 lbs
3196 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540/1000 |
Dimensions & Tires | |
|---|---|
Wheelbase | 96.5 inches
245 cm |
Weight | 9,471 lbs
4296 kg |
Front tire | 360/70R24 |
Rear tire | 18.4x34 |
Full dimensions and tires ...  | |
Engine
Engine Detail — 290 ci / 4.8 L Diesel
Manufacturer | D243 |
Fuel Type | Diesel |
Configuration | 4-cylinder, liquid-cooled |
Displacement | 290 ci
4.8 L |
Bore/Stroke | 4.25x4.75 inches
108 x 121 mm |
Power | 87 hp
64.9 kW |
Rated RPM | 2200 |
Transmission

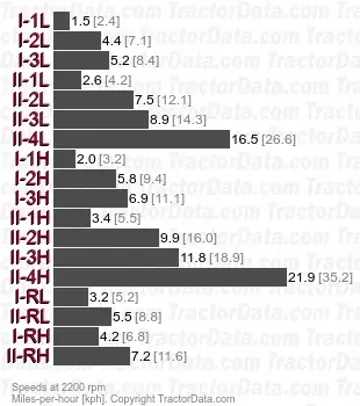

Transmission — 14 forward and 4 reverse partially synchronized
Type | partially synchronized |
Gears | 14 forward and 4 reverse |
Clutch | dry disc |
With 18.4-34 rear tires. | |
 | |
Dimensions
Belarus 5570 Tires | |
|---|---|
Standard tires (ag) | Front: 360/70R24. Rear: 18.4x34 |
Dimensions | |
|---|---|
Wheelbase | 96.5 inches
245 cm |
Length | 155.5 inches
394 cm |
Width | 77.5 inches
196 cm |
Height (hood) | 65.5 inches
166 cm |
Height (cab) | 109 inches
276 cm |
Weight | 9,471 lbs
4296 kg |
Front tread | 56 to 77.5 inches
142 to 196 cm |
Rear tread | 59 to 82.75 inches
149 to 210 cm |
Photos
Belarus 5570.
Belarus 5570.
Belarus 5570.
Belarus 5570.
Recommended Implements & Sizing Guide
Engineering recommendations for Belarus 5570 based on its 87 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 3 to 4 Bottom (16")3 - 4 铧 (40 cm) | Heavy Duty | Suitable for medium loam and stubble turnover. |
Rotary Cutter / MowerMowing & Clearing | 7 to 8 ft (84-96 in)2.1 - 2.4 m | Heavy Duty | Heavy-duty twin spindle cutter for overgrown acreage. |
Rotary TillerSeedbed Prep | 78 to 84 in200 - 215 cm | Heavy Duty | Heavy commercial tiller with multi-speed gearbox. |
Disc HarrowSecondary Tillage | 10 to 14 ft Tandem / Offset3.0 - 4.2 m 重型交错耙 | Heavy Duty | Aggressive residue cutting in corn/cotton stubble. |
Hay BalerHay & Forage | 4x4 to 4x5 Round Baler1.2x1.5 m 紧凑圆捆机 | Heavy Duty | Silage and dry hay; 540 RPM PTO with slip-clutch. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Belarus 5570.
Estimated Continuous Field Runtime: 6.3 hrs
Approximately 6.3 hours of continuous field operation at ~75% rated power on a full tank (28.6 gal / 108.3 L).
Estimated 75% Load Fuel Burn~4.5 gal/hr (17.1 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Belarus 5570 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Belarus 5570.
Converted Equivalents:
Horsepower (HP)87 hp
Kilowatts (kW)64.9 kW
Metric Horsepower (PS / CV)88.2 PS
Direct Competitor Comparison
Compare Belarus 5570 against same-era industry alternatives in the same horsepower class.
Current Model
Belarus
Belarus 5570
Engine Power:Diesel (listed): 87 hp / 64.9 kW
★ Baseline Reference
